Product Description
This 4-pin power splitter connector cable is designed to distribute
one power supply output to two devices. The assembly uses
high-conductivity copper wires and robust crimped terminals to
provide stable power transmission with low electrical resistance.
Nylon housings with polarizing keys and locking ramps ensure secure
mating and prevent accidental disconnection during vibration or
movement.
The Y-type wire harness helps optimize cable management inside
computer cases, servers, and control cabinets. Color-coded leads
simplify installation and troubleshooting, while the compact
connector design saves space around the PCB and PSU output area.
Custom versions can be produced to match specific PCB layouts,
terminal types, and current requirements.
| Product type | 4-pin power splitter connector cable / Y-type wire harness |
| Function | One male 4-pin input to two female 4-pin outputs |

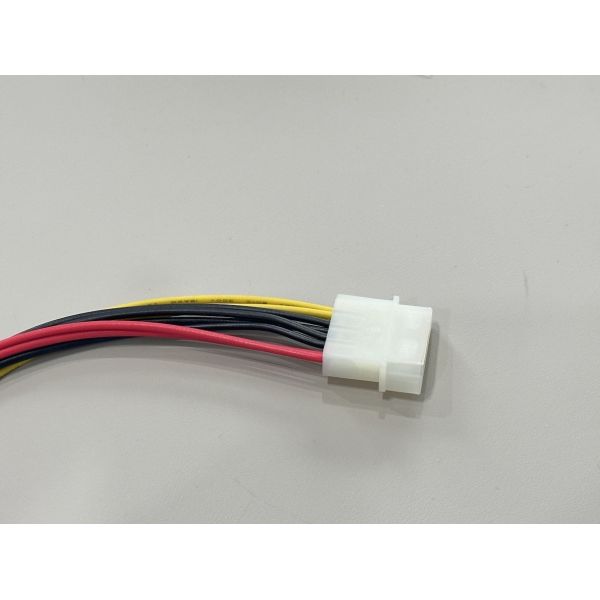

| Connector A | Male 4-pin peripheral power plug (Molex-style) |

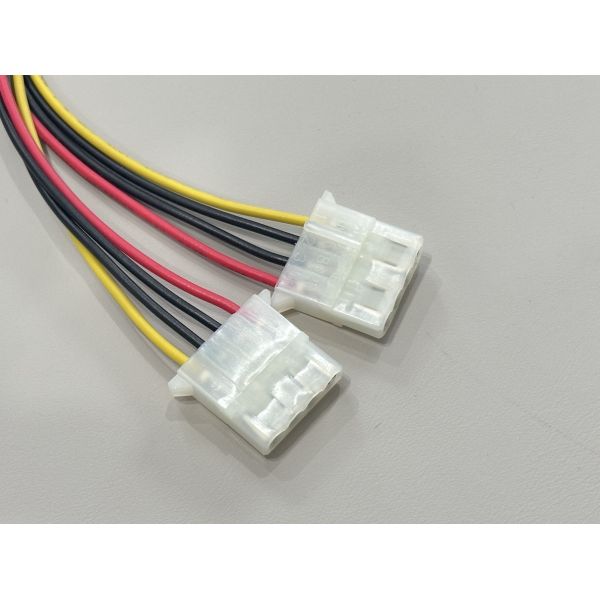

| Connector B | Dual female 4-pin peripheral power sockets |
| Number of positions | 4 pins per connector |
| Pin pitch | 4.20 mm typical peripheral power pitch |
| Wire gauge | 18 AWG stranded copper (other gauges 16–22 AWG available) |
| Wire insulation | PVC, red/yellow/black color-coded power wires |
| Standard cable length | 200 mm (length customizable on request) |
| Rated voltage | 300 V AC/DC |
| Rated current | Up to 7 A per contact (depending on gauge and ambient temperature) |
| Contact material | Phosphor bronze terminals |
| Contact plating | Tin plated, optional selective gold plating |
| Housing material | PA66 (nylon), UL94V-0 flame-retardant |
| Termination method | Crimp contacts inserted into mating housings |
| Operating temperature | −20 °C to +105 °C |
| Compliance | RoHS / REACH / halogen-free options |
| Customization options | Length, wire gauge, colors, connector type, pin count, packaging,
customer logo |
Applications
Extending one PSU peripheral power output to two devices such as
HDDs, optical drives, fans, or SATA adapters.
Internal power wiring for desktop PCs, gaming systems,
workstations, and server racks.
Power distribution harnesses for industrial controllers, mining
rigs, storage arrays, and embedded electronics.
Customized power cable assemblies for automotive electronics, LED
lighting bars, and DC distribution boxes.
Precautions
Confirm the total current of both loads does not exceed the rated
current of the connector, wire gauge, or PSU rail.
Check the mating orientation and pin assignment before powering on;
reverse connection may cause device or PSU damage.
Avoid sharp bends, pulling, or twisting near the connector ends to
maintain long-term reliability.
Ensure all terminals are fully seated and housings are locked
during installation; periodically inspect for discoloration or
deformation caused by overheating.
For high-temperature or high-vibration environments, consult for
upgraded materials or additional fixation methods such as cable
ties or clips.
