    High-reliability SATA 7-pin PCB connector, 1.27 mm pitch power/signal connector for HDD/SSD storage, industrial control, server boards, OEM custom wire harness and cable assemblies

    Ask Lasest Price
    Brand Name : ShuangYi
    Model Number : SATA-C07M-C7M10A2-00LH 2
    Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959
    Price : $0.16-0.26 PCS FOB
    Payment Terms : T/T
    Supply Ability : 500000 pcs per month
    Delivery Time : 8-15 working days
    • Product Details
    • Company Profile

    High-reliability SATA 7-pin PCB connector, 1.27 mm pitch power/signal connector for HDD/SSD storage, industrial control, server boards, OEM custom wire harness and cable assemblies

    Product Description

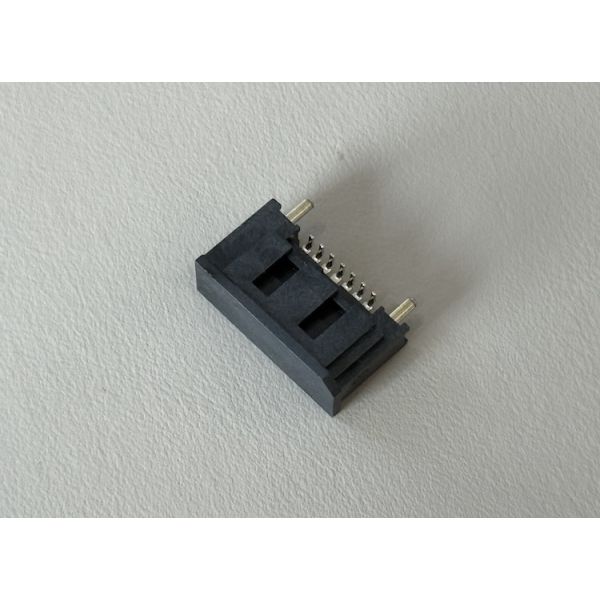

    This SATA 7-pin PCB connector is designed for reliable high-speed signal and power transmission in compact electronic devices. The connector uses a 1.27 mm pitch contact layout, allowing a small footprint while maintaining sufficient creepage and clearance distance for stable operation.

    Precision-stamped copper-alloy terminals with gold-over-nickel plating on the mating area provide low contact resistance and long-term corrosion resistance, while tin-plated solder tails ensure consistent solderability on standard PCB processes. The housing is molded from high-temperature, flame-retardant thermoplastic, suitable for reflow or wave soldering and repeated thermal cycles.

    Positioning posts and a robust housing structure improve retention strength on the PCB and resist mechanical shock and vibration in demanding applications such as industrial equipment and servers.



    Product typeSATA 7-pin PCB connector
    FunctionPower/signal transmission connector for storage and other electronic equipment
    Pin count7 pins
    Pitch1.27 mm
    Mounting styleRight-angle PCB mounting with solder tails and positioning posts
    TerminationThrough-hole / wave-solder compatible
    Contact materialCopper alloy
    Contact platingGold over nickel on contact area, tin on soldering area
    Housing materialHigh-temperature thermoplastic (LCP), UL94V-0 flame rating
    Rated current1.5 A per contact (40 VAC) max
    Rated voltage40 VAC max
    Contact resistance≤ 30 mΩ (initial)
    Insulation resistance≥ 1000 MΩ at 500 VDC
    Dielectric withstand500 VAC, 1 minute, no breakdown
    Operating temperature−20 °C to +85 °C
    EnvironmentalRoHS / HF / REACH compliant
    CustomizationDifferent pin counts, plating thickness, cable assemblies and harness solutions available

    Applications

    Connection between motherboard and 2.5" / embedded SATA storage modules

    Industrial controllers, PLCs and data-logging equipment requiring compact board-to-device SATA connections

    Server and telecom boards where high-density power/signal connectors are needed for storage backplanes

    Customized harness and cable assemblies for automotive data recorders, DVR/NVR, and embedded computers

    Test fixtures and adapter boards for HDD/SSD verification and burn-in equipment

    Precautions

    Ensure the PCB footprint and hole dimensions strictly follow the recommended layout to guarantee proper coplanarity, solder fill and mechanical retention.

    Avoid exceeding the rated current and voltage per contact; distribute power lines across multiple pins if high current is required.

    Keep connector and PCB mating areas free from flux residue, dust and other contaminants to maintain low contact resistance and signal integrity.

    During insertion and extraction, apply force along the mating direction only; avoid twisting or prying to prevent damage to terminals or housing.

    When used in high-vibration environments (automotive, industrial machinery), consider additional mechanical fixing or reinforcement and verify with reliability testing.

    Store connectors in a dry, clean environment and follow standard ESD and moisture-sensitive handling procedures prior to assembly.
