Product Description

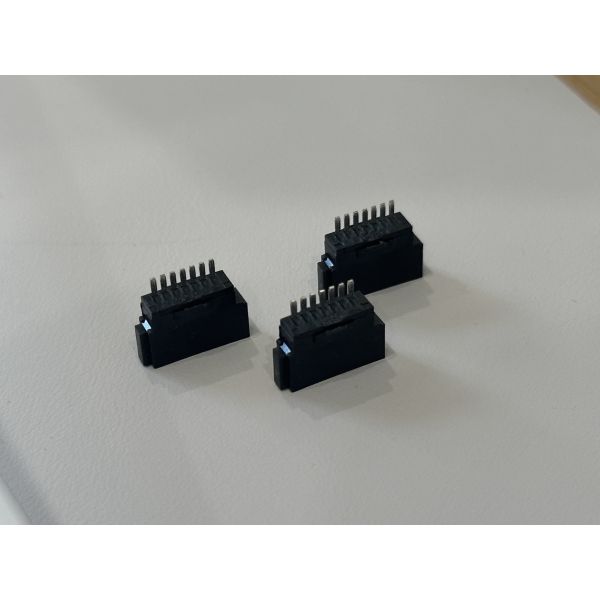

This SATA 7P SMT female PCB connector is designed for high-speed
serial data transmission between HDD/SSD devices and host boards.
With a standard 7-pin layout and 1.27 mm pitch, it supports SATA
I/II/III data rates and provides a stable, low-loss electrical path
for differential signal pairs.
Gold-plated terminals over nickel ensure low contact resistance and
long-term corrosion resistance, while the high-temperature
thermoplastic housing meets UL94V-0 flame-retardant requirements
for reliable performance in dense electronic systems. The
right-angle SMT structure is suitable for edge-mounting on compact
PCBs, saving vertical space and simplifying automatic reflow
soldering processes.
This connector can be customized with different gold thicknesses,
tape-and-reel or tray packaging, and complete cable or harness
assemblies to match specific server, storage or industrial designs.
| Product type | SATA 7P SMT female PCB connector |
| Interface standard | Serial ATA 7-pin data connector |
| Pin count | 7 pins |
| Pitch | 1.27 mm (typical SATA pitch) |
| Mounting type | SMT, right-angle, edge-board mounting |
| Contact type | Female terminals, board-to-cable data interface |
| Contact plating | Approx. 30 μ" gold over nickel on contact area |
| Housing material | High-temperature thermoplastic, UL94V-0 grade |
| Rated current | Up to 1.5 A per contact (reference, application dependent) |
| Rated voltage | Up to 30 V AC / DC (low-voltage signal use) |
| Insulation resistance | ≥ 1000 MΩ at 500 V DC |
| Contact resistance | ≤ 30 mΩ (initial) |
| Dielectric strength | 300 V AC / minute |
| Mechanical durability | ≥ 500 mating cycles |
| Operating temperature | −25 °C to +85 °C |
| PCB thickness reference | Around 1.0 mm board edge design |
| RoHS/REACH | Halogen-free, RoHS-compliant materials |
| Customization options | Gold thickness, housing color, packaging, harness assembly |
Applications
Server and data-center storage backplanes
Desktop and industrial PCs, embedded boards and IPC motherboards
HDD/SSD, optical drives and removable storage modules
Network storage (NAS), RAID cards and controller boards
Automotive infotainment or telematics units using SATA-based
storage
Precautions
Recommended for high-speed differential signal lines only; avoid
using as a power connector beyond rated current and voltage.
Ensure PCB pad layout and solder mask follow the manufacturer’s
footprint to maintain impedance control and solder reliability.
Keep connectors free from dust, flux residue or mechanical damage
before reflow; contamination may increase contact resistance.
Observe the specified reflow temperature profile for the
thermoplastic housing to prevent deformation.
Do not exceed the rated mating cycles; excessive plugging can wear
the gold plating and degrade signal integrity.
For applications in harsh vibration or temperature environments,
combine with secure mechanical retention or housing to prevent
micro-movement.
