Product Description

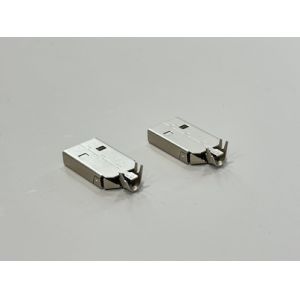

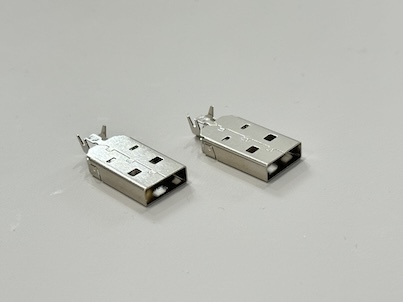

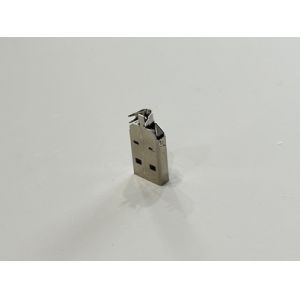

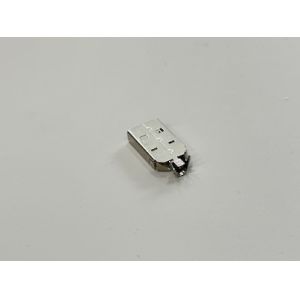

This USB 2.0 AM dual-piece connector features a precision-stamped
brass shell (C2680) with a bright nickel plating of 80u" minimum,
ensuring excellent corrosion resistance and long-term durability.
It supports stable electrical signal transmission and is widely
used in power supply cables, electronic devices, industrial
equipment, and automotive interfaces. The connector is engineered
with strict dimensional control, smooth surface finish, and
enhanced mechanical strength, making it suitable for
high-reliability assemblies and customized cable production.
| Product Type | USB 2.0 AM Dual-Piece Connector |
| Structure | 2-piece stamped brass shell |
| Material | Brass (C2680) |
| Plating | Nickel ≥ 80u" (bright finish) |
| Length | 24.7 mm |
| Outer Diameter | Ø4.50 mm (reference) |
| Pin Count | Standard USB Type-A male interface |
| Surface Quality | No scratches, dents, or burrs ≤ 0.02 mm |
| Salt Spray Test | ≥ 48 hours |
| Tolerance | ±0.10 / ±0.20 (per drawing zones) |
| Compliance | RoHS, REACH |
| Application Type | Wire-to-PCB, power transmission, electronic equipment |
Applications
Power supply cables and USB charging assemblies
PCB-mounted electronic devices
Automotive diagnostic equipment and in-vehicle electronics
Consumer electronics, home appliances, smart devices
Industrial controllers, servers, and data-transmission modules
Precautions
Ensure the connector length and shell dimensions match your cable
and tooling requirements.
Avoid excessive mechanical impact during termination to maintain
plating integrity.
Store in a dry environment to prevent moisture corrosion or
oxidation.
Follow correct soldering and assembly guidelines to ensure stable
electrical performance.
Verify compatibility with USB 2.0 standard during product design.
