Product Description

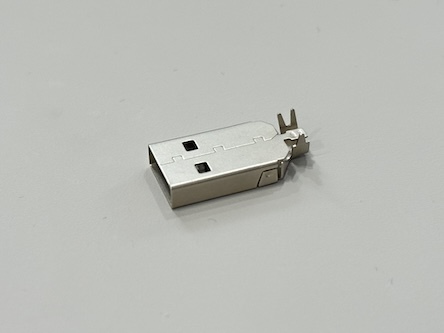

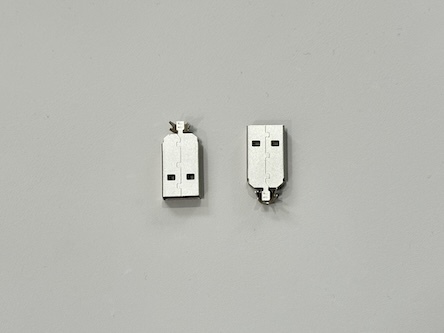

This USB 2.0 AM integrated metal shell connector is engineered for
stable electrical and signal transmission in consumer electronics,
industrial devices, and automotive modules. The one-piece SPCC
housing enhances structural strength, while the nickel-plated
finish ensures corrosion resistance and reliable grounding
performance. Manufactured with strict dimensional control and
burr-free edges, the connector provides high durability for
frequent plugging cycles. Laser marking, customized shell codes,
and tailored cable assembly options are available to meet diverse
application requirements.
| Product Type | USB 2.0 AM Integrated Metal Shell Connector |
| Structure | One-piece stamped metal housing |
| Material | SPCC steel, nickel plated |
| Plating Thickness | Ni ≥150 μ" (full shell plating) |
| Dimension Length | 24.7 mm (critical controlled dimension) |
| Surface Requirement | No scratches, dents, burrs ≤0.05 mm |
| Salt Spray Test | ≥48 hours, no rust/oxidation |
| Laser Marking | Supported, laser-before-plating process |
| Compliance | RoHS / REACH |
| Application Type | Wire-to-device / PCB interface |
| Custom Options | Cable OD, pin layout, plating, marking |
Applications
Power and data transmission for consumer electronics
PCB interface for industrial controllers and automation devices
Automotive infotainment and diagnostic equipment
Servers, storage systems, and communication modules
Custom wire harness assemblies requiring robust male USB connectors
Precautions
Confirm shell dimensions and plating thickness meet design
requirements before assembly
Avoid excessive pulling force on the cable during installation
Keep the connector dry and dust-free to maintain contact
performance
Ensure compatibility of cable OD and strain-relief structure for
customized assemblies
Follow recommended soldering and processing guidelines to prevent
deformation of the metal shell
