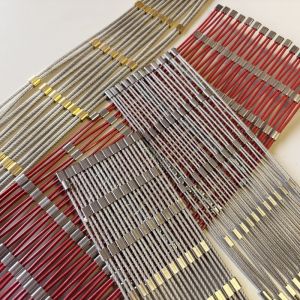

    Flexible Stainless Steel Cable Mesh For Fall Protection System

    Ask Lasest Price
    Brand Name : HUIHAO KASITE
    Model Number : HH-SCM-1.5
    Certification : ISO9001-2015
    Price : USD14-USD28/M2
    Payment Terms : T/T
    Supply Ability : 60000 SQUARE METERS PER 30 DAYS
    Delivery Time : WITHIN 7 WORK DAY
    • Product Details
    • Company Profile

    Flexible Stainless Steel Cable Mesh For Fall Protection System

    Flexible Stainless Steel Cable Mesh For Fall Protection System
    The horizontal mesh diamond direction is suitable for small, individual panels. When wire rope netting mesh panels are joined continuously, Huihao offers a vertical mesh diamond direction that can be assembled on-site with proper tools. For larger mesh widths and safety-critical applications, vertical mesh diamond direction is recommended.
    Key Dimensions & Specifications
    • Maximum length: 6000 mm
    • Maximum height: 2500 mm
    • Profile diameter: Ø 16.0 mm to Ø 48.3 mm
    • Maximum weight: 50 kg
    • Special geometries available
    • Custom frame details upon request
    Stainless steel cable mesh maintains its structural integrity under self-weight and additional loads. The uniform tension distribution across the rope net surface ensures exceptional stability.
    Stainless steel cable mesh installation example
    Our cable mesh supports three-dimensional tension loads, with shaping controlled by strategic placement of tensioning elements. The lightweight construction offers excellent economic efficiency while maintaining structural performance.
    Specification of Stainless Steel Cable Mesh
    Item No.Cable DiameterMesh Opening Size (W×H)
    HH-32120F1/8 inch (3.2 mm)4.75 x 8.23 inch (120 x 207.8 mm)
    HH-32102F1/8 inch (3.2 mm)4 x 6.9 inch (102 x 176.7 mm)
    HH-3290F1/8 inch (3.2 mm)3.55 x 6.15 inch (90 x 156 mm)
    HH-3276F1/8 inch (3.2 mm)3 x 5.2 inch (76 x 131.6 mm)
    HH-3251F1/8 inch (3.2 mm)2 x 3.46 inch (51 x 88.3 mm)
    HH-24102F3/32 inch (2.4 mm)4 x 6.9 inch (102 x 176.7 mm)
    HH-2490F3/32 inch (2.4 mm)3.55 x 6.15 inch (90 x 156 mm)
    HH-2476F3/32 inch (2.4 mm)3 x 5.2 inch (76 x 131.6 mm)
    HH-2460F3/32 inch (2.4 mm)2.4 x 4.16 inch (60 x 104 mm)
    HH-2451F3/32 inch (2.4 mm)2 x 3.46 inch (51 x 88.3 mm)
    HH-2076F5/64 inch (2.0 mm)3 x 5.2 inch (76 x 131.6 mm)
    HH-2060F5/64 inch (2.0 mm)2.4 x 4.16 inch (60 x 104 mm)
    HH-2051F5/64 inch (2.0 mm)2 x 3.46 inch (51 x 88.3 mm)
    HH-2038F5/64 inch (2.0 mm)1-1/2 x 2.6 inch (38 x 65.8 mm)
    HH-1676F1/16 inch (1.6 mm)1.2 x 2.08 inch (76 x 131.6 mm)
    HH-1651F1/16 inch (1.6 mm)2 x 3.46 inch (51 x 88.3 mm)
    HH-1638F1/16 inch (1.6 mm)1-1/2 x 2.6 inch (38 x 65.8 mm)
    HH-1630F1/16 inch (1.6 mm)1.2 x 2.08 inch (30 x 52 mm)
    HH-1625F1/16 inch (1.6 mm)1 x 1.73 inch (25.4 x 44 mm)
    HH-1238F3/64 inch (1.2 mm)1-1/2 x 2.6 inch (38 x 65.8 mm)
    HH-1230F3/64 inch (1.2 mm)1.2 x 2.08 inch (30 x 52 mm)
    HH-1225F3/64 inch (1.2 mm)1 x 1.73 inch (25.4 x 44 mm)
    HH-1220F3/64 inch (1.2 mm)4/5 x 1.39 inch (20 x 34.6 mm)
    Applications of Stainless Steel Cable Mesh
    • Balustrading
    • Fall protection systems
    • Security fencing
    • Trellis for small plants
    • Architectural decoration
    • Space separation
    • Shopfitting solutions
    • Building cladding
    • Railing refurbishment
