PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

    Buy cheap PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 from wholesalers

    Buy cheap PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 from wholesalers
    • Buy cheap PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 from wholesalers
    • Buy cheap PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 from wholesalers
    • Buy cheap PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 from wholesalers

    PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

    Ask Lasest Price
    Model Number : HH-1.5mm
    Certification : ISO9001-2015
    Price : USD8-26/M2
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 30000 square meters per 10 days
    Delivery Time : within 15 work days
    • Product Details
    • Company Profile

    PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

    PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
    Product Specifications
    AttributeValue
    NameFerrule wire rope mesh
    MaterialStainless steel 304/316/316L
    Wire Diameter1mm-6mm
    Mesh Size20mm-200mm
    Surface TreatmentSilver or black oxide finish
    CoverPVC coated
    Mesh DirectionHorizontal, Vertical
    Construction Of Wire Cable7x7, 7x19
    CustomizationFrame System Design
    UsageSafety Net, Balcony Stair Fence
    Product Overview
    PVC coated ferrule type wire rope net combines stainless steel cables with durable ferrules made of matching grade stainless steel. This construction offers excellent physical properties while maintaining a clean, professional appearance.
    Key Features
    • Material options: Stainless steel 304, 304L, 316, 316L
    • Ferrule material: Tinned copper, nickel plated copper, or stainless steel
    • Surface treatment: Silver or black oxide finish
    • Wire cable construction: 7×7 or 7×19
    • Cable diameter range: 1.0-5.0 mm
    • Mesh opening sizes: 20-200 mm
    • Standard mesh opening angle: 60° (custom angles available)
    • Connection method: Ferrule or knotted
    • Certification: EN1263-1 compliant for static and dynamic load capacity
    Product Visuals
    Close-up view of ferrule wire rope mesh showing connection details Installed ferrule wire rope mesh in architectural application
    Technical Specifications
    Cable Diameter (inch)Cable Diameter (mm)Mesh Opening Size (inch)Mesh Opening Size (mm)
    1/83.22 x 3.4651 x 88.3
    3/322.42 x 3.4651 x 88.3
    5/642.02.4 x 4.1660 x 104
    5/642.02 x 3.4651 x 88.3
    5/642.01-1/2 x 2.638 x 65.8
    1/161.62 x 3.4651 x 88.3
    1/161.61-1/2 x 2.638 x 65.8
    1/161.61.2 x 2.0830 x 52
    1/161.61 x 1.7325.4 x 44
    Product Variations

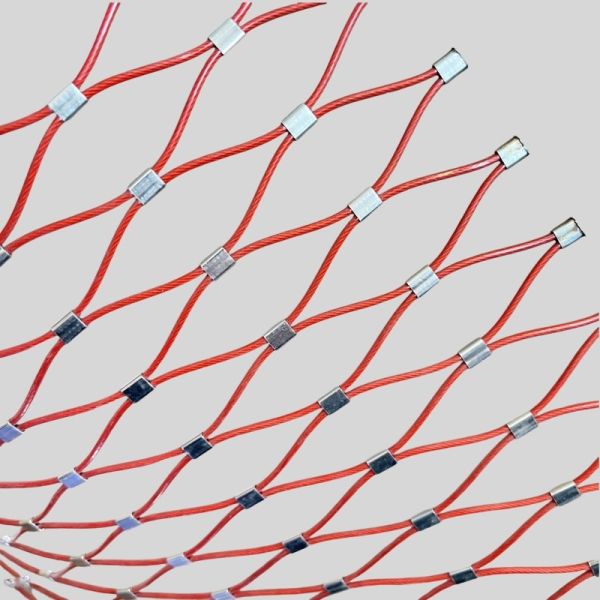

    Different types of architectural wire rope mesh configurations Comparison of ferrule type vs other wire rope mesh types
    Applications
    Stainless steel cable mesh is primarily used in construction for wild zoos, large animal enclosures, aviaries, garden green walls, and as handrail infill or safety mesh. The ferrule type offers superior aesthetic appeal and is ideal for architectural applications requiring both decorative and protective functions.
    Ferrule wire rope mesh used in zoo enclosure application
    Key Advantages
    • High tensile strength with light weight
    • Environmentally safe and natural appearance
    • Excellent weather and corrosion resistance
    • High transparency with good invisible effect
    • Large mesh span suitable for extensive surface installations
    • Durable structure with over 30 years service life
    • Flexible design options for various graphics and structures
    • Easy installation on any supporting structure
    Close-up of wire rope mesh showing durability and construction
    Packaging Options
    Standard Packaging: Rope mesh without frame is packed in rolls with protective plastic film, then placed in wooden cases. Framed rope mesh is securely fastened on pallets for safe transportation.
    Packaged wire rope mesh ready for shipment
