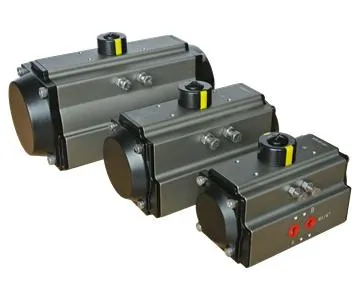

VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar
air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve,
interface for solenoid valve, shaft top end and top drilling for
assembling accessories are in accordance with VDI/VDE3845 (Namur)
standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized
treatment and over 100um epoxy coated on end caps which meet ASTM
B117 qualification, over 500 hours salt spread test, no corrosion
on actuator.
> The end cap can be blue, black, grey, yellow etc as your
request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against
corrosive & abrasive environment are available.
