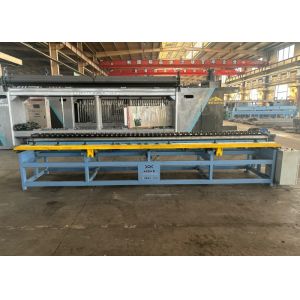

    High Output Gabion Production Line 4M Automatic Edge Folding Machine

    Ask Lasest Price
    Brand Name : APBWR
    Model Number : Golden Cyclone-4000
    Certification : ISO9001
    Price : $5000-50000
    Supply Ability : 1000+ /year
    Delivery Time : 14-21DAYS
    • Product Details
    • Company Profile

    High Output Gabion Production Line 4M Automatic Edge Folding Machine

    4M Automatic Edge Folding Machine


    1.Edge Folding Machine Key Components:


    1. Frame Assembly: Robust load-bearing structure providing foundational support.

    2.Electrical Cabinet: Centralized control unit for system operations.

    3.Material Feeding Mechanism: Automated system delivering mesh sheets into the workstation.

    4.Mesh Pressing Unit: Hydraulic/pneumatic clamps securing materials during processing.

    5.Rolling Mechanism: Precision rollers forming and finishing the beaded edges.


    2. Edge Folding Machine Working Process:


    1. Material Loading: Automated feeding positions metal sheets.

    2. Clamping & Alignment: Hydraulic systems secure and center the workpiece.

    3. Edge Folding: Precision rollers form uniform folds (adjustable angle/depth).

    4. Quality Check; Sensors verify dimensional accuracy.

    5. Unloading: Finished parts are ejected for stacking.


    3.Edge Folding Machine Technical Specifications:


    Wire Diameter: ≤3mm

    Mesh Sizes: Adjustable (e.g., 60x80 mm to 130x160 mm).

    Production Speed: folding 10 pieces of mesh per minute, depending on the model and complexity of the product.

    Motor Power: 7.5kw

    Crimping Angle: Forward Rotation: 306°–720° , Reverse Rotation: 180°–360°


    4. Edge Folding Machine Key Features:


    High Automation: Reduces manual intervention and boosts production efficiency through automated operation.

    Precision Crimping: Ensures uniform and secure edge crimping for consistent product quality.

    Material Versatility: Processes various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire).

    User-Friendly Interface: Intuitive controls enable easy and quick operation.

    Durability: Built with premium materials to withstand prolonged heavy-duty use.


    Edge Folding Machine Parameter Configuration Table
    1Standard weaving width4000mm
    2Wire diameter range≤3mm
    3Crimping Angle- Forward Rotation: 306°–720°
    - Reverse Rotation: 180°–360
    4Speed10 pieces/minute
    5DurabilityConstructed with premium materials to withstand prolonged heavy-duty use.
    6Motor Power7.5KW
    7Automatic pause system✔yes □no
    8Dimensions (length * width * height)5500mm*1200mm*1300mm
    9Net weight2.5T

    Notes:

    • Customization: Parameters are adjustable based on client requirements.
    • Application: Specifically designed for gabion mesh production to reinforce edge stability.
    • Material Compatibility: Processes various mesh materials and specifications.

    Edge Folding Machine Advantages
    1High AutomationReduces manual intervention and boosts production efficiency through automated operation.
    2Precision CrimpingEnsures uniform and secure edge crimping for consistent product quality.
    3Material VersatilityProcesses various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire).
    4User-Friendly InterfaceIntuitive controls enable easy adjustments and quick operation.
    5DurabilityConstructed with premium materials to withstand prolonged heavy-duty use.
