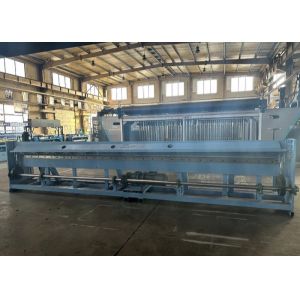

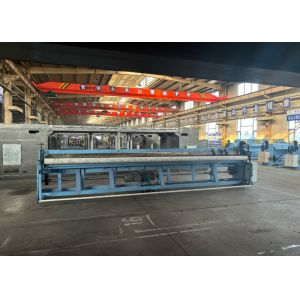

4m CNC Gabion Mesh Cutting Machine

4M Mesh Cutting Folding Machine

1.Mesh Cutting Folding Machine Components:

1. Rack Section: Heavy-duty steel structure designed for stability and vibration resisitance during high-speed operations.

2.Electrical Cabinet: Equipped with a touchscreen interface for programming and cutting parameters (width, speed, patterns) and monitoring real-time performance.

3.Wire Feeding Mechanism: Automatically uncoils and straightens wires (≤5mm diameter) using motorized rollers.

4.Pressing Mechanism : Hydraulic/pneumatic clamps securing materials during processing. Adjustable clamping force prevents material slippage and ensures burr-free edges.

5.Rolling Mechanism: Speed-synchronized with the cutting unit to maintain continuous production flow.

2. Edge Folding Machine Working Process:

1. Material Loading: Wires or mesh panels are fed into the machine via conveyor or manual placement. .

2. Parameter Setup: Operators input cutting width, speed, and pattern using the CNC interface.

3. Precision Cutting: Laser-guided blades execute cuts within ±0.3mm tolerance, minimizing waste.

4. Quality Check: Integrated sensors verify dimensions and edge quality in real time.

5. Output & Stacking: Finished panels are ejected onto a conveyor for packaging or further processing.

3.Edge Folding Machine Technical Specifications:

Wire Diameter Capacity: ≤5mm

Cutting Width: 4000mm (1m/2m/3m/4m available on request)

Production Speed: folding 10 pieces of mesh per minute, depending on the model and complexity of the product.

Motor Power: 7.5kw

4. Edge Folding Machine Key Features:

Modular Design: Swap cutting heads and dies in minutes to handle different materials (e.g., stainless steel, PVC-coated wire) and mesh sizes.

Smart CNC System: Auto-adjusts cutting parameters based on material thickness and hardness.

Energy Efficiency: 20% lower power consumption compared to traditional models, with energy-saving servo motors.

Remote Maintenance: Real-time diagnostics and remote troubleshooting minimize downtime.

1. Company Overview

Enterprise History & Strength & Global Perspective

Company Identity and Positioning

Anping Weaver Wire Mesh Equipment Manufacturing Co., Ltd. is based in Anping, the Wire Mesh Capital of China, and specializes in the development and manufacturing of CNC wire mesh machinery. With a global vision, we deliver high-precision, intelligent, and sustainable solutions to customers worldwide.

Industrial background and enterprise DNA

Anping boasts over 500 years of wire mesh heritage and is home to the world’s largest wire mesh industrial cluster. Leveraging this integrated ecosystem and strong governmental support, we ensure agility and cost-efficiency in delivery.
Our company inherits over 40 years of expertise from the automotive industry, operating under the IATF 16949 quality management system, bringing automotive-grade precision and reliability to wire mesh machinery manufacturing.

Internationalization positioning

Our products are exported to Europe, the Americas, Asia, and the Middle East, supported by remote technical assistance, operator training, and efficient global delivery—empowering our clients to stay ahead in a competitive market.

Cooperate philosophy

Action for excellence, integrity for trust, learning from Customers,Growing Together.

1.Company Mission

To deliver high-precision, intelligent wire mesh machinery solutions for global customers, enabling efficient, safe, and sustainable manufacturing.

2. Company Vision

Rooted in the Wire Mesh Capital, Weaving a Global Smart Manufacturing Network

3. Core Values

·  Execution with Excellence: Deliver on every commitment with precision and reliability.

·  Integrity & Partnership: Build trust through honesty and transparency for long-term success.

·  Co-Creation & Growth: Learn from our customers to innovate and improve, driving mutual growth.

4.Quality Policy

We adhere to the IATF 16949 automotive industry quality management system, implementing full-process quality control and continuous improvement to ensure every machine delivers precision, stability, and reliability—providing trusted intelligent manufacturing solutions worldwide.

5.Cultural DNA

Our culture is rooted in Practical Action, Integrity, and Continuous Learning. We believe that execution creates value, honesty builds trust, and learning fuels innovation.

2.Why Choose Us

· 1️⃣Automotive-Grade Quality
Compliant with IATF 16949 standards for consistent reliability

· 2️⃣Patented 5-Axis CNC Technology
Ensuring superior weaving accuracy and stability

· 3️⃣ Full CNC Automation
Reducing labor dependency for consistent quality

· 4️⃣ Modular Design
Quick changeovers for multiple specifications

· 5️⃣Global Delivery & Support
Serving Europe, Asia, and Middle East with remote support

· 6️⃣ Customized Solutions

          Tailored machine size & mesh specs to your needs

Optional

“Precision. Reliability. Innovation. This is our commitment to every customer.”

3.Core Products

1.Metal Wire Mesh Weaving Machine:

Our independently developed Metal Wire Mesh Weaving Machine is widely used in industrial applications such as precision filtration mesh, protective mesh, and screening mesh. The machine supports various wire diameters and mesh sizes and is compatible with stainless steel, copper, nickel, aluminum, and other metallic wires. Customers can flexibly configure key components such as machine type, drive system, tension control, and CNC system to achieve efficient and precise automated production.

Product Features

· Weaving widths from 1300mm to 2300mm to meet diverse production needs

· Supports plain weave, twill weave, Dutch weave, and more

·High-precision tension and control systems suitable for fine wires and dense mesh

· Self-developed system

· Customizable to meet specific technical or structural requirements

Note:

This is the specification table for our current basic models of metal wire mesh weaving machines.

We can provide customized production based on the customer's specific requirements.

On top of the basic models, flexible configuration options are available to meet different production needs.

2.Gabion Mesh Machine :

1.  We specialize in the R&D and manufacturing of high-performance gabion mesh machines, widely used in hydraulic engineering, slope protection, infrastructure construction, and eco-restoration projects.         Featuring a self-developed 5-axis CNC linkage system, our machines lead the industry in weaving precision, operational stability, and intelligent automation. Combined with full CNC automation, modular design,   and eco-friendly operation, we deliver flexible, efficient, and sustainable gabion mesh solutions for global clients.
2. To meet diverse customer requirements in precision, efficiency, and weaving complexity, we offer 3-axis and 5-axis linkage drive CNC gabion mesh machines. We recommend evaluating your specific production needs before selection. Customized configuration services are also available. Please refer to the comparison chart below for more details.

4.Technology & Solutions

· 先进技术(CNC控制,AI张力控制)Advanced technologies (CNC control, AI tension control)

· 智能化+节能设计 Intelligentization + Energy-saving Design

· 远程诊断与数字化管理 Remote diagnosis and digital management

5. Application

· 防洪工程 | Flood Control

· 道路护坡 | Road Protection

· 工业过滤 | Industrial Filtration

· 景观工程 | Landscaping

6. Service Commitment

· 12个月质保(12-Month Warranty)

· 安装与培训(Installation & Training)

· 远程技术支持(Remote Technical Support)

· 本地化备件供应(Local Spare Parts Plan)

· 测试与检验(Inspection & Video Confirmation)

7. Contact

Anping Weaver Wire Mesh Equipment Manufacturing Co., Ltdt
Tel: +86 318-7738888 | Email:reidma1989@163.com
Url: www.apweaver.com
