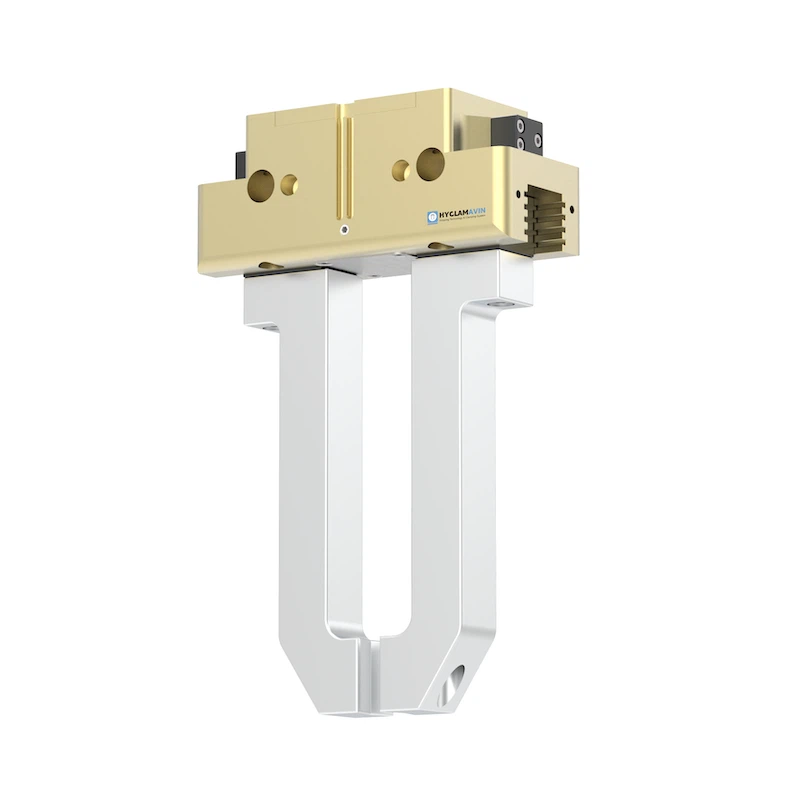

2 Jaw Parallel Gripper, Multi-tooth Guidance TWN-P

  • Product Details
  • Company Profile

2 Jaw Parallel Gripper, Multi-tooth Guidance TWN-P

2 Jaw Parallel Gripper, Multi-tooth Guidance TWN-P

Compact structure can be used for short stroke and heavy load

The load is distributed to more surfaces to reduce the contact stress

Grease can be distributed more quickly and evenly

It can ensure enough motion rigidity and accuracy for a long time

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

TWN-P Type info(1200_471).jpg

Excellent performance

1. The TWN-P grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance.

  • Compact structure can be used for short stroke and heavy load
  • The load is distributed to more surfaces to reduce the contact stress
  • Grease can be distributed more quickly and evenly
  • It can ensure enough motion rigidity and accuracy for a long time
  • The oil storage structure in the multi tooth guide extends the service life
  • Maximum finger length can be increased by 50%

2. The TWN-P grippers have a variety of sensor interfaces and pneumatic interfaces.

TWN-P Interfaces(1200_484).png

Gripping force maintenance-AS/IS

1. The TWN-P grippers can be equipped with gripping force maintenance, expanded to TWN-P- AS/IS(AS:closing maintenance, IS:opening maintenance ).

2. The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.

TWN-P Gripper force maintenance(1200_451).png

Dust-tight version

The TWN-P grippers can be equipped with dust-tight version, expanded to TWN-P-SD, and reach IP64.

High-temperature version

The TWN-P grippers can be equipped with high temperature version, expanded to TWN-P-HT, the temperature tolerance range is increased from 5/90℃ of the basic version to 5/130℃.

Model and Technical Parameters

ModelStroke per jaw [mm]Closing/ opening force[N]Min. spring force[N]Weight [kg]Recommended workpiece weight[kg]Closing/ opening time[s]Repeat accuracy [mm]Protecti on class IP
TWN-P-40A-12.5198/2100.080.990.02/0.020.0140/64
TWN-P-40A-1-AS2.5258/-600.10.990.02/0.030.0140/64
TWN-P-40A-12.5-/280700.10.990.03/0.020.0140/64
TWN-P-50A-14240/2550.161.20.02/0.020.0140/64
TWN-P-50A-1-AS4330/-900.21.20.02/0.030.0140/64
TWN-P-50A-1-IS4-/345900.21.20.03/0.020.0140/64
TWN-P-50A-22430/4600.162.150.02/0.020.0140/64
TWN-P-50A-2-AS2550/-1200.22.150.02/0.030.0140/64
TWN-P-50A-2-IS2-/5801200.22.150.03/0.020.0140/64
TWN-P-64A-16360/3880.261.80.02/0.020.0140/64
TWN-P-64A-1-AS6515/-1550.361.80.02/0.040.0140/64
TWN-P-64A-1-IS6-/5431550.361.80.04/0.020.0140/64
TWN-P-64A-23730/7850.263.650.02/0.020.0140/64
TWN-P-64A-2-AS31040/-3100.363.650.02/0.040.0140/64
TWN-P-64A-2-IS3-/10953100.363.650.04/0.020.0140/64
TWN-P-80A-18565/6300.522.820.04/0.040.0140/64
TWN-P-80A-1-AS8805/-2400.62.820.03/0.050.0140/64
TWN-P-80A-1-IS8-/8702400.62.820.05/0.030.0140/64
TWN-P-80A-241145/12750.525.720.04/0.040.0140/64
TWN-P-80A-2-AS41535/-3900.65.720.03/0.050.0140/64
TWN-P-80A-2-IS4-/16653900.65.720.05/0.030.0140/64
TWN-P-100A-110930/9950.94.650.07/0.070.0140/64
TWN-P-100A-1-AS101300/-3701.14.650.05/0.090.0140/64
TWN-P-100A-1-IS10-/13453501.14.650.09/0.050.0140/64
TWN-P-100A-251860/20000.99.30.07/0.070.0140/64
TWN-P-100A-2-AS52400/-5401.19.30.05/0.090.0140/64
TWN-P-100A-2-IS5-/27007001.19.30.09/0.050.0140/64
TWN-P-110A-1201230/13302.56.150.15/0.150.0140/64
TWN-P-125A-1131475/15901.47.370.10/0.100.0140/64
TWN-P-125A-1-AS132125/-6501.97.370.08/0.120.0140/64
TWN-P-125A-1-IS13-/22406501.97.370.12/0.080.0140/64
TWN-P-125A-262990/32201.414.950.10/0.100.0140/64
TWN-P-125A-2-AS64190/-12001.914.950.08/0.120.0140/64
TWN-P-125A-2-IS6-/442012001.914.950.12/0.080.0140/64
TWN-P-160A-1162600/27153130.10/0.100.0140/64
TWN-P-160A-1-AS163550/-9003.8130.10/0.200.0140/64
TWN-P-160A-1-IS16-/36159003.8130.20/0.100.0140/64
TWN-P-160A-285270/5500326.350.10/0.100.0140/64
TWN-P-160A-2-AS86770/-15003.826.350.10/0.200.0140/64
TWN-P-160A-2-IS8-/700015003.826.350.20/0.100.0140/64
TWN-P-200A-1254300/45005.521.50.30/0.300.0240/64
TWN-P-200A-1-AS255600/-1300721.50.30/0.600.0240/64
TWN-P-200A-1-IS25-/60001500721.50.60/0.300.0240/64
TWN-P-200A-2147700/81005.538.50.30/0.300.0240/64
TWN-P-200A-2-AS1410200/-2500738.50.30/0.600.0240/64
TWN-P-200A-2-IS14-/109002800738.50.60/0.300.0240/64
TWN-P-240A-1305450/56808.727.250.50/0.500.0440/64
TWN-P-240A-1-AS308200/-275011.827.250.45/0.900.0440/64
TWN-P-240A-1-IS30-/8430275011.827.250.90/0.450.0440/64
TWN-P-240A-2179440/98508.947.20.50/0.500.0440/64
TWN-P-240A-2-AS1714590/-51501247.20.45/0.900.0440/64
TWN-P-240A-2-IS17-/1500051501247.20.90/0.450.0440/64
TWN-P-300A-1356850/719013.634.250.50/0.500.0540/64
TWN-P-300A-1-AS358600/-175017.334.250.40/0.700.0540/64
TWN-P-300A-1-IS35-/8940175017.334.250.70/0.400.0540/64
TWN-P-300A-22011870/1246013.659.350.50/0.500.0540/64
TWN-P-300A-2-AS2015870/-400017.359.350.40/0.700.0540/64
TWN-P-300A-2-IS20-/16460400017.359.350.70/0.400.0540/64
TWN-P-380A-14510700/111002753.50.60/0.600.0540/64
TWN-P-380A-1-AS4514300/-36003753.50.50/0.800.0540/64
TWN-P-380A-1-IS45-/1480037003753.50.80/0.500.0540/64
TWN-380A-22620500/2130027102.50.60/0.600.0540/64
TWN-P-380A-2-AS2627400/-690037102.50.50/0.800.0540/64
TWN-P-380A-2-IS26-/28300700037102.50.80/0.500.0540/64

Recommended accessories

2-Jaw Parallel Grippers Accessories
