    7W High Power 5.8GHz FPV Video Transmitter with 80 Channels and Long Range Transmission for Racing Drones

    Ask Lasest Price
    Brand Name : Kimpok
    Model Number : KP-T5870
    Certification : CE Cerfication
    Price : Negotiation
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 3000/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    7W High Power 5.8GHz FPV Video Transmitter with 80 Channels and Long Range Transmission for Racing Drones

    Product Description
    High power 5.8GHz video transmitter for FPV racing with long range transmission capability and lightweight 56g design.
    Key Specifications
    AttributeValue
    Channel80 CH
    Frequency Range4990MHz-5945MHz
    Power Supply7~36V 2-8S battery
    Weight56g
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 0

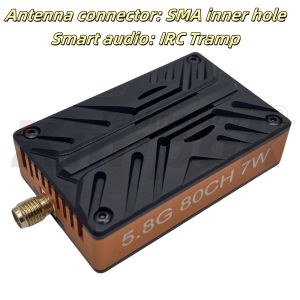

    Front view of the 7W 5.8G VTX FPV Video Transmitter
    Technical Specifications
    • 4.9GHz-6GHz 80 CH (4990MHz-5945MHz)
    • Max power: 7W (1W/2.5W/5W/7W adjustable)
    • Input voltage: DC 15V-36V, supporting 2-8S battery input
    • Antenna connector: SMA inner hole
    • Smart audio: IRC Tramp
    • Heat-dissipating method: aluminum alloy shell with heat sink & fan
    • Mounting hole spacing: 20mm*20mm/ø2mm
    • Dimensions: 64.13mm*37.2mm*17.2mm
    • Weight: 56g
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 1
    Dimensional diagram showing exact measurements
    Interface Overview
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 2
    Control layout and interface components
    • Channel indicator: Red LED
    • Band indicator: Blue LED
    • Power indicator: Green LED
    • Band & Channel changer button
    • Power changer button
    • 1.0 6P Power connector
    • SMA Mother seat inner hole
    Operation Guide
    • Channel Selection: Short press button to cycle through channels 1-8 (indicated by red LED flashes 1-8 times)
    • Band Selection: Long press button for 5 seconds to switch between frequency bands A and B (indicated by blue LED)
    • Power Adjustment: Short press button to cycle through power levels (1W/2W/5W/7W). Long press for 3 seconds enters pit mode.
    Temperature Protection

    When temperature exceeds 100°C, power reduces incrementally until temperature drops below 95°C, then returns to original setting.

    Frequency Table
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 3
    Complete frequency channel reference table
    Wiring Diagram
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 4
    Connector wiring diagram for proper installation
    Usage Guidelines
    • Ensure adequate ventilation space for proper heat dissipation
    • Verify correct voltage range and polarity before powering on
    • Always connect antenna before powering on to extend module life
    • Read instruction manual thoroughly before operation
    Additional Product Views
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 5
    Side view showing profile and connectors
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 6
    Top view showing control buttons and indicators
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 7
    Close-up of antenna connection point
    7W 5.8GHz 80CH FPV Video Transmitter High Power Long Range VTX for Racing 8
    Example of typical installation configuration
    For optimal performance and longevity, please follow all installation and operation guidelines carefully.
