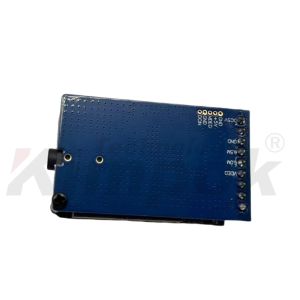

    8CH FPV VTX Wireless Video Module with 7-36V DC Input and 5V/0.5A Output for Stable Drone Video Transmission

    Ask Lasest Price
    Brand Name : kimpok
    Model Number : 2.2G 4.5W vtx
    Certification : CE Cerfication
    Price : Negotiation
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 4,000 pieces per month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    8CH FPV VTX Wireless Video Module with 7-36V DC Input and 5V/0.5A Output for Stable Drone Video Transmission

    Product Description
    2.2G Drone FPV VTX High Power 4.5W Stable Signal Wireless Video Module
    Key Attributes
    Input Voltage7-36V DC (2-6S)
    Output Voltage5V/0.5A
    Weight21.5g (excluding antenna)
    Number of Channels8CH
    Product Overview

    The 2.2G 4.5W VTX is a high-performance wireless analog video transmitter designed for drones requiring stable, long-range, low-latency image transmission. Operating within the 2.0 to 2.28GHz frequency range, it reduces interference from common bands and ensures smooth video feed in both urban and remote environments.

    Key Features
    • 2.2G frequency band for reduced interference and reliable transmission
    • Adjustable power levels (25mW, 800mW, 4500mW) to suit various ranges and environments
    • Supports IRC Tramp protocol and OSD tuning for easy frequency and power control
    • Wide voltage range operation from 7 to 36V, compatible with 2 to 6S LiPo batteries
    • Provides 5V 0.5A output for powering cameras or other equipment
    • Compact design with 30.5 x 30.5mm mounting holes for direct installation
    • Built-in temperature protection prevents overheating
    Product Advantages
    • Strong and stable signal performance in challenging environments
    • Flexible power adjustment for optimal distance, stability, and heat management
    • Compatible with most FPV drones and camera systems
    • Durable construction for long-term reliability
    • Simple integration into existing drone setups
    Applications
    • FPV drone racing with fast, precise control
    • Aerial photography and filming with clear video feed
    • Industrial inspection with reliable long-distance transmission
    • Security and surveillance with stable real-time monitoring
    Technical Specifications
    Frequency Range2000 to 2280MHz (8 channels)
    Channel SelectionShort press button or OSD control
    Power Levels25mW, 800mW, 4500mW adjustable
    Input Voltage7 to 36V DC (2 to 6S)
    Output Voltage5V 0.5A
    Video FormatPAL/NTSC
    Antenna ConnectorSMA outer thread inner hole
    Dimensions37 x 46 x 17.5mm (including SMA and fan)
    Weight21.5g (excluding antenna)
    Modulation TypeFM
    Special FunctionsIRC Tramp protocol, temperature protection
