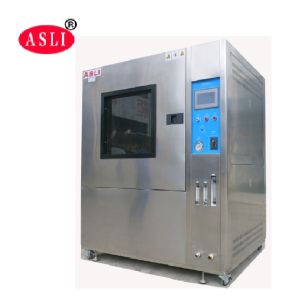

    Laptop Computer Lcd Screen Rain Spray Test Chamber Tester

    Ask Lasest Price
    Brand Name : ASLi
    Model Number : RT Seires
    • Product Details
    • Company Profile

    Laptop Computer Lcd Screen Rain Spray Test Chamber Tester

    Laptop Computer Lcd Screen Rain Spray Test Chamber Tester


    application:

    Laptop Lcd Screen Tester Rain Spray Test Chamber is used to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.


    Laptop Lcd Screen Tester Rain Spray Test Chamber feature:

    1. Water pressure and flow rate adjustable.

    2. Unique sprinkler can stably control the rain quantity and pressure.

    3. This equipment (Model RT-1000B) can make the test products’ temperature rising from RT to 85°C

    4. Interior workspace material is steel plates, exterior is #304 stainless steel.

    Laptop Lcd Screen Tester Rain Spray Test Chamber technical parameters:

    Model

    RT-1000A

    RT-1000B

    Internal Dimension

    WxHxD (mm)

    1000x1000x1000

    External Dimension

    WxHxD (mm)

    1600x1900x1400

    JIS Test

    Flow:1.8L/Min to 3.9L/Min

    Flow:24.5L/Min to 39.2L/Min

    pressure:0.1kgf/cm2 to 0.3 kgf/cm2

    pressure: 1kgf/cm2 to 3 kgf/cm2

    Drop Test

    1 to 1.5mm/Min adjustable

    IPx1 IPx2 drop speed: 1 to1.5mm/Min adjustable

    3 to 3.5mm/Min adjustable

    drop speed:3 to 3.5mm/Min adjustable

    Rain of Pipe-Swing

    Test

    IPx3 IPx4 swing pipe: RT to ±80°C

    Flow:0.07L/min per Nozzle

    Water Spray Test

    IPx3 IPx4 jet:2.5m to 3m

    flow :12.5L/min to 100L/Min

    High Pressure

    Jet Test

    80Kgf to 100Kgf

    IPx9K pressure of jet:80Kgf to 100Kgf

    Flow:14 to 16L/Min

    Rotating Speed of

    Rotating-Plate

    4 to 20 RPM adjustable

    More Laptop Lcd Screen Tester pictures:
