| Model Number : | YH150 |
| Payment Terms : | |
| Delivery Time : | 45 Work Days |
| Brand Name : | OEM |
| Price : | Negotiable |
| Supply Ability : | Customized |
| Certification : | |
Description:

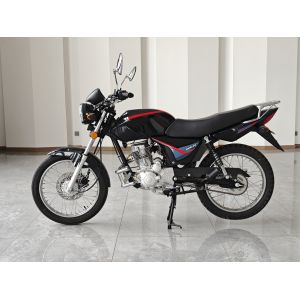

Yinxiang Power, CG150 engine, Honda original cover parts, front disc and rear drum, front and rear mesh wheels, Far Star road tires, dual circular instrument panel, plated muffler/rear shelf/front bumper, rear brake with copper based shoes.
Specifications:
| Item | Parameter |
| Dimensions (Length x Width x Height) | 2010×730×1080mm |
| Seat Height | 770mm |
| Wheelbase | 1340mm |
| Minimum Ground Clearance | 300mm |
| Maximum Load | 150kg |
| Steering Angle | 35 |
| Side Stand Tilt Angle | 14 |
| Ride Capacity | 2 Person |
| Dry Weight | 110kg |
| Fuel Tank Capacity | 14.5L |
| Front Braking System | Disc brakes |
| Rear Braking System | Drum brakes |
| Front Tire Size | 2.75/18 |
| Rear Tire Size | 3.00/18 |
| Battery Size | 12V/6.5Ah |
| Engine Type | Single cylinder, air-cooled, four-stroke |
| Engine displacement | 149 |
| Bore x stroke | 62×49.5 |
| Compression ratio | 9.0:1 |
| Maximum power | 8.5/8500(kw/r/min) |
| Maximum torque | 10/6500-7500(N·m/r/min) |
| Maximum speed | 90km/h |
| Start-up acceleration | 15S |
| Overtaking acceleration | 14S |
| Lubrication method | Pressure, Splash |
| Oil volume | 1.1L |
| Clutch type | Multi-plate wet clutch, manual |
| Ignition method | CDI |
| Spark plug | A8RTC |
| Starting method | Electric kick starter |
| Transmission method | Chain drive |
| Final gear ratio | 15:43 |




Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. Packaging Parameters:
A: The size of SKD is 1840×460×840mm, and a 40HQ container can hold 96 units.
The size of CKD is 1160×880×380mm, and a 40HQ container can hold 154 units.
Q6. Minimum Order Quantity:
A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.
Q7. After-sales Service:
We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
|
