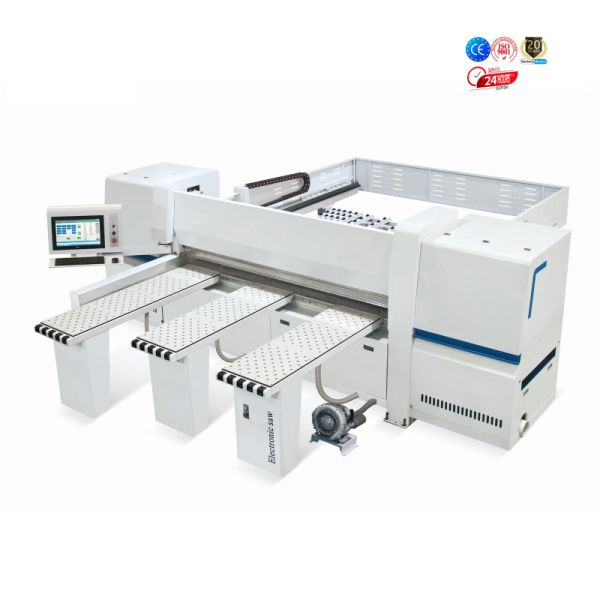

BHM3300 CNC Beam Saw - Auto Cutting Panel Processing Saw
Step into the future of woodworking efficiency with the 3300L
Intelligent CNC Beam Saw. This cutting-edge machine is engineered
to transform your production floor, seamlessly blending industrial
strength with smart, automated technology. It is the ultimate
solution for workshops and factories aiming to maximize output,
minimize waste, and achieve unparalleled precision in every cut. By
automating the most complex cutting tasks, the 3300L empowers your
team to accomplish more with less effort.
Engineered for Unmatched Performance and Durability
At the heart of the 3300L lies a chassis built for a lifetime of
precision. Unlike conventional saws, our machine features a
stress-relieved, reinforced body that guarantees stability,
ensuring the cutting accuracy you depend on remains consistent for
years. The robust construction acts as a solid foundation for all
high-speed movements, eliminating the risk of deviation and
ensuring every panel is cut to perfection.
Intelligent Operation at Your Fingertips
We believe powerful machinery should be simple to operate. The
3300L features an intuitive control interface that makes complex
cutting plans effortless. With built-in guidance and visual
troubleshooting, operators can quickly master the system. The
platform’s true power lies in its connectivity; it seamlessly
integrates with a wide array of industry-standard design and
optimization software. Simply import your cutting list, and the
3300L takes care of the rest, optimizing material usage to
significantly reduce costs.
Precision-Driven Cutting Components
Precision is non-negotiable. Our beam saw incorporates high-torque
servo motors and premium linear guide rails to ensure razor-sharp
accuracy on every pass. The powerful 16.5kW spindle effortlessly
slices through materials up to 85mm thick, while the advanced
air-flotation table allows for smooth, frictionless movement of
even the heaviest panels. The innovative magnetic sensing system
replaces outdated mechanical limits, providing reliable,
maintenance-free operation in dusty environments.
Key Advantages
- Work Envelope: Handles panels up to 3300mm in width and 3200mm in length.
- Power & Speed: A 16.5kW main motor and cutting speeds up to 100 m/min ensure fast
cycle times.
- Exceptional Accuracy: Achieves a remarkable sawing accuracy of ±0.2mm.
- Optimized Workflow: Automated clamping and positioning systems drastically reduce
setup time.
Beyond the Standard MachineTailor the 3300L to your specific needs with our range of premium
optional features. The integrated optimization software suite
unlocks remote monitoring, barcode printing, and intelligent
remnant management, turning raw data into actionable savings. For
operations frequently processing smaller components, the optional
side-pushing device offers enhanced speed and accuracy for trimming
and sizing small panels.
Technical Specifications
| Parameter | Specification |
|---|
| Main motor power | 16.5kw (18.5KW optional) |
| Power of auxiliary motor | 2.2kw |
| Robot servo motor | 2.0kw |
| Traction motor power | 1.5KW frequency converter speed regulation (optional servo) |
| Maximum cutting thickness | 85mm |
| Maximum sawing width | 3200mm |
| Maximum sawing thickness | 100MM |
| Servo positioning accuracy | 0.02mm |
| Sawing accuracy | ±0.2mm |
Advanced Features
- INVT Servo with Taiwan Boton high-precision gear rack
- The main saw guide uses circular guide rails for easy maintenance
- Pneumatic floating ball table surface for effortless material
handling
- Automatic sawing stroke positioning reduces idle time
- User-friendly control system with troubleshooting guidance
- Compatible with various optimization and ERP management software
- Rubber-coated flexible double-clamp robotic pressing blocks
- Servo-controlled robotic arm with ±0.1mm positioning accuracy
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong
province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable
design and production plan for your requirements.
Q4: Is this machine easy to operate for first-time users?
A4: We provide guide videos and English instruction manuals with
the machine. Our team offers free professional guidance until you
can operate the machine proficiently.
Q5: What's your MOQ and delivery terms?
A5: Minimum order quantity is 1 set. We ship directly to your
country's port - please provide your port name for the best
shipping rates and machine pricing.
Contact us immediately for more product information!
Special reminder: Different customers can customize models and configurations
according to their needs. Due to product variety, orders require
prepayment. We provide quotations based on customer requirements.
Please confirm actual pricing with our staff according to product
model configuration.
