Cnc Router Machine Cnc Router Engraving Machine for Wood

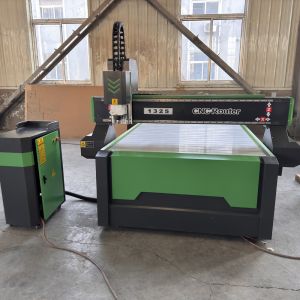

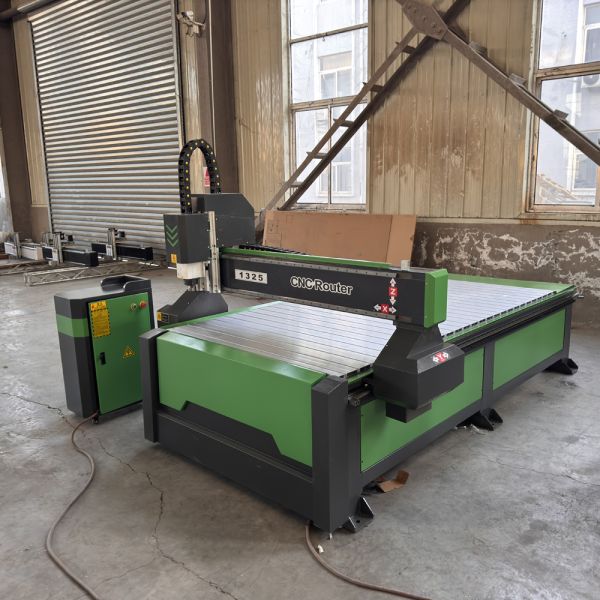

The BHM1325M is a high-performance CNC router designed for reliable
and precise cutting, carving, and milling tasks. It is built with a
strong and stable structure, making it suitable for long-term use
in various workshop environments.
Technical Specifications
| Component | Specification |
|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
Special reminder: Different customers can customize models and
configurations according to their needs. Due to product variety,
orders require prepayment. We provide quotations based on customer
requirements. Please confirm actual pricing with our staff
according to product model configuration.
Key Features
MACHINE PARTS
Brand: BH
Origin: China
Features: long lifespan, low noise, free maintenance |  |
MAIN FEATURES
Three-axis 20 square rail and slider
Brand: BH
Origin: China
Features: fast running speed and strong bearing capacity |  |
MACHINE PARTS
Name: T-slotTable
Brand: BH
Origin: China
Features: much more economic |  |
MAIN FEATURES
Origin: China
Name: independent control cabinet
Features: easy to operate and simple to control |  |

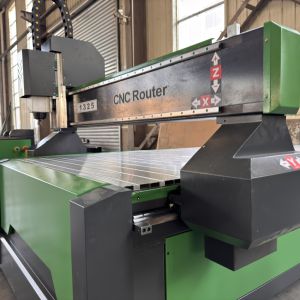

Body and Frame
The machine features a welded square tube frame that can be taken
apart if needed. The gantry is made from thick square steel and
supported by cast iron columns, which improves overall strength and
reduces vibration during operation. This design ensures smooth
movement and high machining accuracy.
Worktable
The work surface is made from aluminum profiles with a PVC cover.
This combination offers excellent load-bearing capacity and
protects the aluminum from damage. The table size is 1300×2500 mm,
perfect for handling standard-sized sheets.
Performance and Accuracy
The BHM1325M offers an effective working area of 1.3×2.5 meters and
maintains a machining accuracy of up to 0.05 mm. It uses a 6.0KW
air-cooled spindle that runs at 24,000 RPM, allowing it to work on
a variety of materials with ease.
Transmission System
All three axes use 20-series square rails and sliders for smooth
and steady motion. The rack is a high-precision 1.25-meter gear
rack, and the Z-axis uses a belt and gear drive system for accurate
vertical movement.
Motor and Drive
The machine is equipped with a Chuangwei 450B stepper motor and a
Skyworth 860 drive system, offering reliable power and control. A
Zhuzhou 7.5KW frequency converter helps maintain stable spindle
operation.
Electrical Components
Key electrical parts are from Schneider Electric, known for their
durability and resistance to interference, moisture, and impact.
This ensures the machine runs safely and stably over long periods.
Additional Features
Automatic Oil Lubrication: The built-in oiling system regularly lubricates the rails and
screws, extending their service life.
Wear-Resistant Drag Chains: These keep power and signal cables separated and protected from
interference and tangling.
Control System: The router uses a user-friendly JM Weihong operating system and
comes with a separate control cabinet.
Power Supply: It operates on 380V/220V, 50Hz power.
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong
province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable
design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy
to operate?
A4: We provide guide videos and English instruction manuals with
the machine. Our team offers free professional guidance until you
can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your
country's port - please provide your port name for the best
shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas
installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during
warranty period, we provide repair services.
