    Mbf64-11 Type Medium-Temperature Box Furnace For Processes Of Degassing Sintering Curing Of Glass And Electronic Components.

    MBF64-11 Medium-Temperature Box Furnace
    The MBF64-11 Type Medium-Temperature Box Furnace is designed for degassing, sintering, and curing processes of glass and electronic components, offering reliable performance for laboratory and industrial applications.
    Key Features
    • Corrosion-resistant heating elements for extended durability
    • Uniform temperature field for consistent results
    • Intelligent control system with PID self-tuning
    • Ideal for ceramic sintering, metal heat treatment, and powder metallurgy
    • Optimized for precision materials like electronic ceramics and LTCC

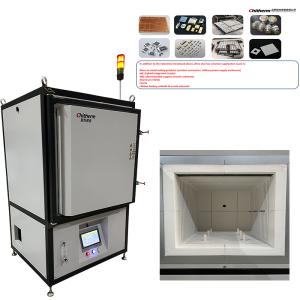

    MBF64-11 Medium-Temperature Box Furnace interior view showing heating chamber
    Technical Specifications
    ParameterValue
    Rated Temperature1000°C
    Maximum Temperature1100°C
    Furnace Chamber Dimensions600×600×600mm (W×H×D)
    Effective Dimensions400×400×400mm (W×H×D)
    Heating ElementsFEC ceramic fiber heating plates
    Maximum Heating Power24kW
    Temperature Control Stability±1°C
    Temperature Uniformity±3°C within effective area
    Delivery List
    ItemNoteQTY
    FurnaceBasic Composition1 PC
    Certificates of InspectionFurnace and major components1 Set
    FEC HeaterKey Part1 Set
    Temperature control moduleAzbil1 PC
    SSRSpare1 PC
    Facility Requirements
    • Indoor installation with temperature range of 0°C to 40°C and humidity ≤80% RH
    • Non-contact exhaust system with capacity >10 m³/h
    • Three-phase five-wire AC power: 380±10% V, 50±2% Hz
    • Dedicated power line without high-power conversion equipment
    • Reliable grounding required
    • Gas source working pressure: 0.2 to 0.4 MPa
    MBF64-11 Medium-Temperature Box Furnace certification documentation MBF64-11 Medium-Temperature Box Furnace packaging and shipping
    About Hefei Chitherm Equipment Co., Ltd.
    Specializing in research, development, and manufacturing of industrial and laboratory furnaces, our product range includes bell furnaces, box furnaces, vacuum furnaces, and more. Our solutions serve advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaics industries, supporting various thermal treatment processes.
    Hefei Chitherm Equipment manufacturing facility MBF64-11 Medium-Temperature Box Furnace advantages MBF64-11 Medium-Temperature Box Furnace technical advantages
