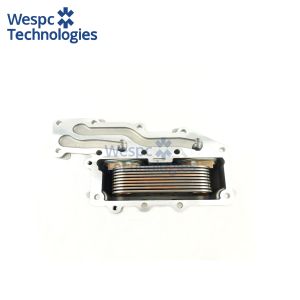

WESPC Oil Cooler 2486A217 For Perkins 1104A-44 Engine Spare Parts
Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
Part Number | 2486A217 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The 2486A217 oil cooler is engineered for Perkins 1104-series
4.4-litre turbo-diesel engines—specifically 1104A-44, 1104A-44T,
1104A-44TA, 1104C-44, 1104C-44T, 1104C-44TA, 1104D-44, 1104D-44T
and 1104D-44TA—as well as Caterpillar C4.4 derivatives. These power
units are found in a wide spectrum of agricultural tractors
(including many Massey Ferguson, Landini and McCormick models),
combine harvesters, telehandlers, backhoe loaders, generator sets
and other industrial machines where reliable oil-temperature
control is critical.
Technical specifications:
Weight 1.388 kg, overall dimensions and mounting points match the
original installation envelope. The core is a bar-and-plate
aluminium construction with precision-cast end tanks; tube diameter
and fin pitch are optimised for a heat-rejection capacity of
approximately 6 kW under rated engine load.
Material & performance features:
The full-aluminium core delivers high thermal conductivity while
keeping mass low; cast end tanks are TIG-welded to eliminate leak
paths. Vacuum-brazed joints ensure maximum fatigue resistance
against vibration and thermal cycling. A corrosion-resistant
epoxy-polyester powder-coat finish is applied externally for
durability in harsh off-highway environments.
Interchange part numbers:
PERKINS 2486A217, 4134W025, 4134W027; MASSEY FERGUSON 3638721M91;
LANDINI 747602M91; McCORMICK 3638721M91; reference numbers
4224786M1, 4236806M1, WG1104543.
