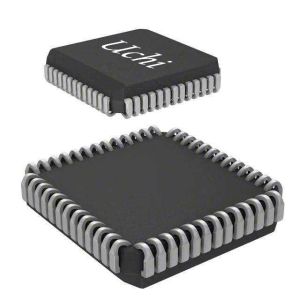

Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip

    Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers

    Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers
    • Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers
    • Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers
    • Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers
    • Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers
    • Buy cheap Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip from wholesalers

    Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : SGM3836A
    Certification : Completed
    Price : Negotiable
    Payment Terms : T/T,Western Union
    Supply Ability : 5000pcs
    Delivery Time : 3weeks
    • Product Details
    • Company Profile

    Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip

    Triple-Output AMOLED Display Power Supply Integrated Circuit IC Chip
    The SGM3836A is designed for powering AMOLEDdisplays which require VAVDD, VELVDD and VELVSS. Thedevice integrates two boost converters, VO1 for VELVDDand VO3 for VAVDD, and an inverting buck-boostconverter VO2 for VELVSS. Output voltages of all thethree converters can be programmed in digital stepsthrough the digital interface control pin (CTRL).The SGM3836A is available in a Green TQFN-3×3-16Lpackage. It operates over an ambient temperaturerange of -40℃ to +85℃.
    Key Features

    ● 2.9V to 4.5V Input Voltage Range
    ● Synchronous Boost Converter (ELVDD)
     4.6V to 5.0V Output Voltage with 100mV Steps
     4.6V Default Output Voltage 1% Accuracy
     Output Voltage Sensing Pin for Path LossCompensation (FBS)
    ● Synchronous Inverting Buck-Boost Converter(ELVSS)
     -5.4V to -1.4V Output Voltage with 100mV Steps
     -2.5V Default Output Voltage 1.2% Accuracy at -2.5V
    ● ELVDD & ELVSS Combined Output CurrentCapability
     Up to 800mA at 4.6V/-2.5V (VIN = 3.1V)
     Up to 780mA at 4.6V/-2.7V (VIN = 3.1V)
     Up to 750mA at 4.6V/-3.0V (VIN = 3.1V)
     Up to 630mA at 4.6V/-4.0V (VIN = 3.1V)
     Up to 510mA at 4.6V/-5.4V (VIN = 3.1V)
    ● Synchronous Boost Converter (AVDD)
     5.8V to 7.9V Output Voltage with 300mV Steps
     6.1V Default Output Voltage
     1% Accuracy
     100mA Output Current Capability
    ● VIN and VOUT Bi-Directional Isolation
    ● Short Circuit Protection (SCP)
    ● Overload Protection
    ● Thermal Shutdown
    ● VELVSS Start-Up Delay: 10ms
    ● Short Circuit and OLP Detect Time: 1ms
    ● Available in a Green TQFN-3×3-16L Package

    Applications
    Smartphones & Tablets
    Active Matrix OLED Displays
    Typical Application

    Pin Configurations

    Pin Description

    Product Selection Guid
    Part Number
    EL Output Current
    Max
    (mA)
    VIN
    Min
    (V)
    VIN
    Max
    (V)
    Output
    Channel Number
    (V)
    Control
    Interface
    Outputs

    Packag
    Features
    SGM38042B
    100
    2.75.53
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-1.51×2.10-15B
    SIMO, Triple-Output, for Wearable Deivices
    SGM38045
    702.74.83
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-1.2×2.4-17B
    Inductor-Less, Triple-Output, for Wearable Deivices
    SGM38046
    902.75.53
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-2×2-16B
    Triple-Output, for Wearable Deivices
    SGM3851A
    4002.94.53
    1-Wire
    AVDD/ELVDD/ELVSS
    TQFN-3×3-16L
    Triple-Output, for Smart Phones
    SGM3836A
    6002.94.53
    1-Wire
    AVDD/ELVDD/ELVSS
    TQFN-3×3-16L
    Triple-Output, for Smart Phones
    SGM3837
    6002.953
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-2.0×2.0-25B
    Triple-Output, for Smart Phones
    SGM3838
    7002.54.83
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-2.5×2.5-36B
    Triple-Output, for Smart Phones & PADs
    SGM3839
    12002.54.83
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-2.90×2.96-49B
    Triple-Output, for Smart Phones & PADs
    SGM3842
    10002.94.84
    1-Wire
    AVDD/ELVDD/ELVSS/DVDD
    WLCSP-2.5×2.9-42B
    Four-Output, for Tandem AMOLED Display Smart Phones & PADs
    SGM3843
    12002.956
    I2C
    AVDD/ELVDD/ELVSS/DVDD/VGL/VGL_LDO
    WLCSP-3.3×3.3-64B
    Six-Output, for Smart Phones & PADs
    SGM3843A
    12002.956
    1-Wire
    AVDD/ELVDD/ELVSS/DVDD/VGL/VGL_LDO
    WLCSP-3.3×3.3-64B
    Six-Output, for Smart Phones & PADs
    SGM3840
    10002.54.83
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-2.37×2.37-36B
    Triple-Output, for Smart Phones & PADs
    SGM3837S
    8002.553
    1-Wire
    AVDD/ELVDD/ELVSS
    WLCSP-2×2-25B-A
    Triple-Output, for Smart Phones & PADs

    Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aerospace/defense systems.
    Electronic components and circuit board applications
    Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.

    This solution demonstrates the application of integrated circuits in smart phones and tablets. For assistance selecting the right product, please contact our technical support team.
