    Unpolished Aluminum Vessels for IEC60335-2-6 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness

    Ask Lasest Price
    Brand Name : Pego Electronics
    Model Number : PG-AV
    Certification : CNAS Calibration Certificate
    Price : USD300-USD2000
    Payment Terms : T/T
    Supply Ability : 50 sets/month
    Delivery Time : 3-20 days
    • Product Details
    • Company Profile

    Unpolished Aluminum Vessels for IEC60335-2-6 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness

    Upolished Aluminum Vessels for Normal Operation Test to Hotplates and Hob Elements IEC60335-2-6


    1. Introduction

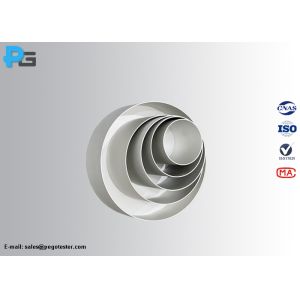

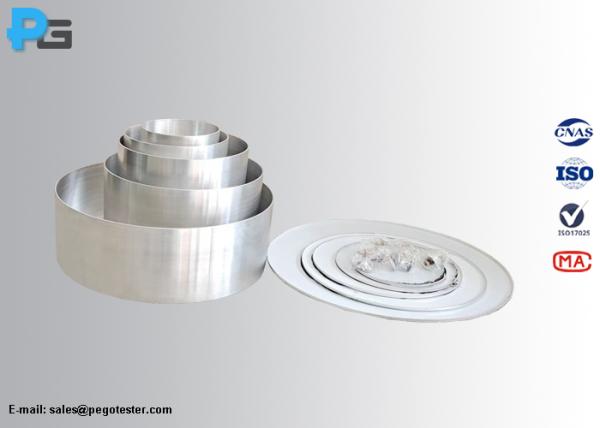

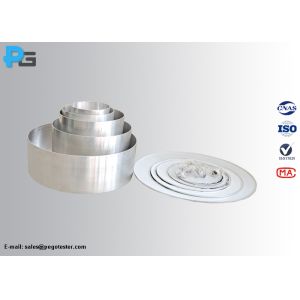

    The upolished aluminum vessels is to simulate cooking appliances to perform normal opeation test to hotplates, hob elements and electric cooking plate. The vessels are made of unpolished commercial quality aluminum, have a flat bottom and are covered with lid. The base of the vessel shall not be convex. The concavity of the base of the vessel shall not exceed 0.05mm.

    The aluminum vessels is designed according to IEC60335-2-9 figure 103, IEC60335-2-6 figure 101, EN30-1-1 figure C2, GB4706.14 figure 103 and GB16410 figure 7.


    2. Specification

    Diameter of Cooking zone

    (mm)

    Approximate of Dimension

    a (mm)

    b (mm)

    c (mm)

    ≤110

    110

    140

    8

    >110≤145

    145

    140

    8

    >145≤180

    180

    140

    9

    >180≤220

    220

    120

    10

    >220≤300

    300

    100

    10
