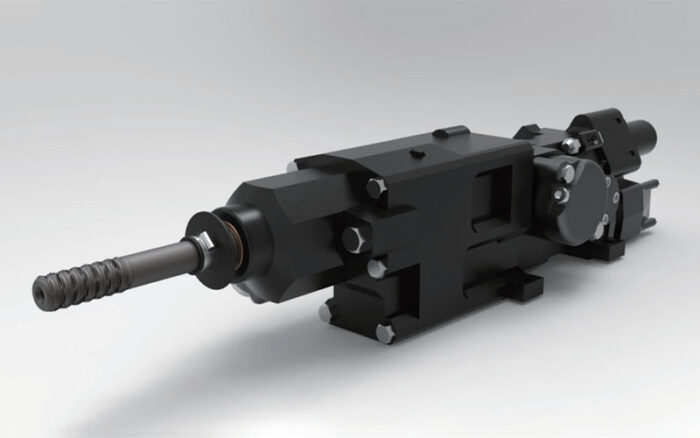

PD300 Lightweight Custom Rock Drill Pneumatic System 76mm

The PD300 hydraulic rock drill is a compact yet powerful drilling solution designed for small to medium-scale mining, tunneling, and construction applications. With a nominal power class of 12 kW and an impact energy of 300 J, it offers efficient performance for hole diameters up to 76 mm and drilling depths up to 20 m.

Despite its lighter weight of 170 kg, the PD300 delivers high percussion efficiency and stable torque, ensuring reliable operation even in challenging rock conditions. The integration of Danfoss rotation motors guarantees smooth and precise rotation, while its air-oil mist lubrication system minimizes wear and extends service life.

The PD300 is also equipped with dual flushing options (air/water), enabling clean hole conditions and optimal drilling performance across different environments.

• Compact and lightweight (170 kg) design for easy installation and operation
• High drilling efficiency with 300 J impact energy
• Optimized for hole diameters up to 76 mm and depths up to 20 m
• Danfoss rotation motor for reliable torque and consistent performance
• Air-oil mist lubrication for reduced wear and extended component life
• Dual flushing system (air/water) for versatile application
• Ideal for small to medium tunneling and mining projects

• Nominal Power Class: 12 kW
• Optimal Maximum Hole Diameter: 76 mm
• Drilling Depth: 20 m
• Impact Energy: 300 J
• Percussion Pressure: 180 bar
• Percussion Oil Flow: 70 L/min
• Rotation Motor: 125 cc/r (Brand: DANFOSS)
• Oil Inlet Rotation Pressure: 200 bar
• Rotation Flow: 75 L/min
• Max. Rotation Speed: 280 rpm
• Max. Torque: 820 N·m
• Shank Size: R32, R38, T38, T45
• Lubrication: Air-oil mist
• Air Lubrication Pressure: 2.5–3.5 bar
• Lubrication Air Flow: 4.5 L/s
• Flushing: Air/Water
• Flushing Water Flow: 70 L/min
• Flushing Air Pressure: 10 bar
• Center Height: 78 mm
• Weight: 170 kg
• Accumulator Nitrogen Charging Pressure: 80–90 bar

The PD300 hydraulic rock drill is designed for customers who require a reliable, lightweight, and efficient rock drilling solution for demanding environments.
