    1400mm Hydraulic Sheet Metal Shear 3 - 4times/Min Horizontal Baler Machine

    Ask Lasest Price
    Brand Name : Wanshida
    Model Number : Q43W-4000
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 30 sets/mon
    Delivery Time : 30days
    • Product Details
    • Company Profile

    1400mm Hydraulic Sheet Metal Shear 3 - 4times/Min Horizontal Baler Machine

    Automatic Cutting Type Horizontal Container Scrap Metal Shear for scrap metal recycling yards


    1. Products:

    The Q43W horizontal metal shear is a heavy-duty industrial machine designed for cold-cutting various metal profiles with precision and efficiency. Its hydraulic-powered system delivers consistent cutting force up to [tonnage] tons, capable of processing


    2.Technical data:


    No.ModelFeeding sizeDischarging sizeBlade sizeCutting speedCutting materialPower
    1.Q43W-4000A1500×1400
    mm
    1400×450 mm1400 mm2-3 times/min

    Square:100×100
    Angle:180×180×15(3 pieces)
    Round:Φ110
    Ⅰ shape:320×132×11.5
    Plate:30×450
    Channel:320×90×10

    84kW
    2.Q43W-4000A12300×1400
    mm
    1400×450 mm1400 mm1-1.5 times/min
    3.Q43W-5000A1400×1400
    mm
    1400×600 mm1400 mm2-3 times/min

    Square:100×100
    Angle:200×200×16(3 pieces)
    Round:Φ110
    Ⅰ shape:400×146×14.5
    Plate:20×1300
    Channel:400×104×14.5

    110kW
    4.Q43W-6300A1400×1400
    mm
    1400×600 mm1400 mm2-3 times/min

    Square:110×110
    Angle:200×200×16(4 pieces)
    Round:Φ120
    Ⅰ shape:400×146×14.5
    Plate:25×1300
    Channel:400×104×14.5

    147kW

    3. Application:

    This horizontal metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transportation of scrap metal materials, also offers qualified furnace charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.


    4. Features:

    1. Horizontal structure

    2. Different from the product with mechanical transmission system, our hydraulically driven machine has a range of characteristics including small volume, light weight, small inertia of movement, low noise, steady movement, flexible operation, large cutting section, etc.

    3. Due to the combination of hydraulic and electrical control, the horizontal metal shear is able to accomplish the shift of single and continuous cutting easily.

    4. While cutting, the machine is able to process the materials automatically without manual support. Operators only need to feed the materials for cutting into the compress room continuously consistent with the cutting speed.

    5. Our product can be powered by motor or Cummins diesel engine as required.

    Industrial Applications

    • Metal Recycling‌: Central processing unit in scrap yards
    • Foundry Operations‌: Prepares 90% furnace charge materials
    • Demolition Sites‌: Processes structural steel from decommissioned buildings

    This equipment combines German hydraulic technology with Japanese blade materials, achieving ≤0.1mm/m cutting precision while maintaining <75dB noise levels during operation. The PLC-controlled system allows for both manual operation and automated production line integration.

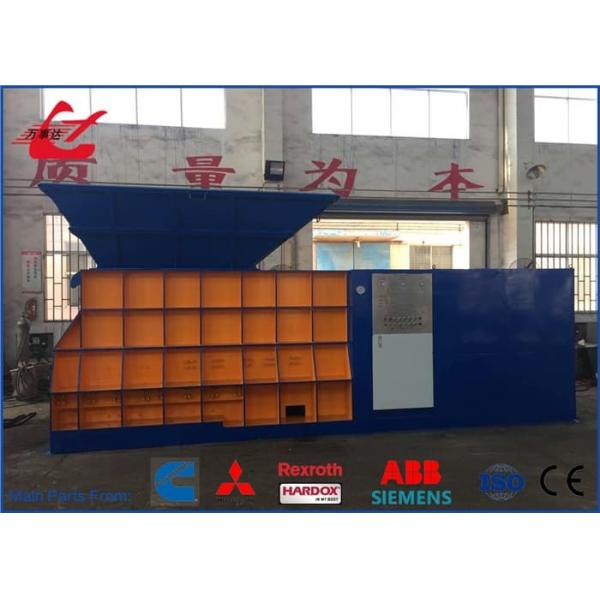

    5. Photos:

    Quality 1400mm Hydraulic Sheet Metal Shear 3 - 4times/Min Horizontal Baler Machine for sale
