JSSCD-H-360A Band Saw machine
Description
Jiangsu Sakoside Intelligent Machinery Technology Co., LTD. operates as a full-service industrial manufacturer, combining research and development, production, and end-to-end sales and customer support. The company specializes in designing and manufacturing band sawing equipment.
Sakoside 's band saws excel at cutting diverse profiles of metal, plastic, and alloy materials, making them widely utilized within the machinery fabrication and processing sectors.
Representing the pinnacle of the company's innovation is the premier H series of column band saw machines. Developed in-house by Sakoside , this line incorporates cutting-edge capabilities inspired by global design principles, specifically optimized for slicing high-hardness metals. Key advantages include:
Boosted Productivity: Delivers significantly faster operating speeds accompanied by substantial energy conservation.
Robust Construction: Features a reinforced transmission system and a more powerful main drive motor, resulting in enhanced linear cutting speed and force.
Superior Cut Results: Delivers exceptional surface finish and accuracy, especially when paired with task-specific cutting fluids and purpose-engineered saw bands.
Extended Durability & Precision: Offers consistent operational performance. The machine columns receive industrial-grade hard-chrome plating, providing exceptional wear resistance, tighter dimensional tolerances, and prolonged service life.

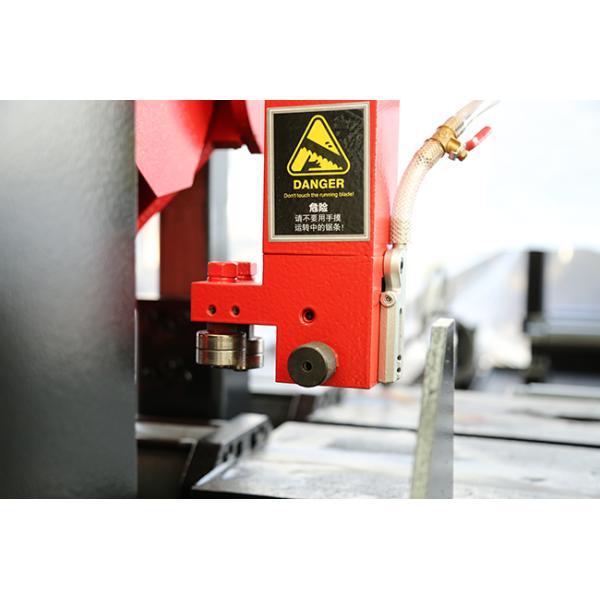

Advanced Guidance & Control: Employs a hydraulic lifting mechanism. Precision cutting is ensured through bearing-supported blade guides coupled with adjustable tungsten steel guide plates.
Specification:
| Model | Unit | JSSCD-H-360A |
| Machine size | mm | 2200*2500*1600 |
| Square bar&angle bar | mm | 360*360 |
| Bar&round pipe | mm | φ360 |
| Saw band speed | m/min | 20-100Variable frequency stepless speed regulation |
| Saw band size |
| 4950*41*1.3 |
| Main motor power | kw | 4 |
| Hydraulic motor power | kw | 1.5 |
| Cooling motor power | kw | 0.09 |
| Hydraulic fluid capacity | L | 80 |
| Cutting fluid capacity | L | 50 |
| Saw band tension |
| Manual |
| Clamping method |
| Hydraulic |
| Feeding method |
| Hydraulic Feeding |
| Feeding stroke | mm | 600 |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a
30,000 square meter factory and a team of dedicated technicians
specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our
city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a
test cut using our machine. After the test is complete, we will
provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for
your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
