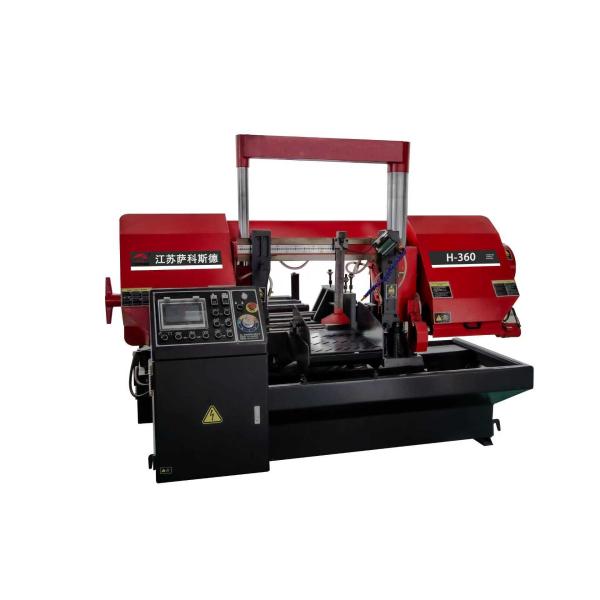

JSSCD-H-360 Band Saw machine
Description
Jiangsu Sakoside Intelligent Machinery Technology Co., LTD.functions as a comprehensive industrial manufacturer, integrating R&D, production, and full-spectrum sales and customer support. The
company focuses on the creation and production of band sawing machinery.
Sakoside's band saws find broad usage within the machinery production and processing industries, employed for sectioning various shapes of metal, plastic, and alloy stock.
The flagship H series of column band saw machines embodies the company's most recent sawing technology. Independently developed by Sakoside, it integrates advanced features derived from international designs and is particularly refined for cutting metals with high hardness. Its notable characteristics are:
Improved Efficiency: Functions at higher operational speeds with notable energy savings.
Strong Build: Incorporates a strengthened transmission system and a higher-capacity main drive motor, yielding greater linear cutting velocity.
Enhanced Cutting Quality: Achieves excellent outcomes when utilizing specialized cutting fluids and saw bands engineered for specific tasks.
Longevity & Accuracy: Provides consistent operational reliability. The machine's columns undergo full hard-chrome plating, delivering outstanding resistance to wear, improved dimensional precision, and extended service life.
Sophisticated Guidance & Operation: Uses a hydraulic lifting system. Accurate sawing is guaranteed via bearing-supported blade guidance and tungsten steel guide plates that are adjustable.
Specification
| Model | Unit | JSSCD-H-360 |
| Machine size | mm | 2200*2500*1600 |
| Square bar&angle bar | mm | 360*360 |
| Bar&round pipe | mm | φ360 |
| Saw band speed | m/min | 35,50,65,90 |
| Saw band size |
| 4950*41*1.3 |
| Main motor power | kw | 4 |
| Hydraulic motor power | kw | 1.5 |
| Cooling motor power | kw | 0.09 |
| Hydraulic fluid capacity | L | 80 |
| Cutting fluid capacity | L | 50 |
| Saw band tension |
| Manual |
| Clamping method |
| Hydraulic |
| Feeding method |
| Hydraulic Feeding |
| Feeding stroke | mm | 600 |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a
30,000 square meter factory and a team of dedicated technicians
specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our
city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a
test cut using our machine. After the test is complete, we will
provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for
your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
