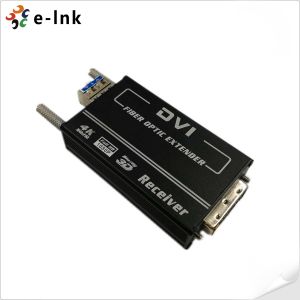

Mini 4KX2K DVI Fiber Converter Transceiver SM10 80KM Manual EDID 3840x2160/30P

Mini 4KX2K DVI Fiber Converter Transceiver SM10 80KM Manual EDID 3840x2160/30P

Product Overview

The E-link Mini 4Kx2K DVI Fiber Transceiver (LNK-D4K-SM Series) delivers professional-grade, long-distance transmission of ultra-high-definition multimedia signals over single-mode fiber. Engineered for extreme-range applications, this compact extender supports HDMI v1.4 and DVI standards, enabling seamless 4K (3840×2160@30p) video and high-fidelity audio transmission across distances of up to 80km—with a standard 10km configuration available.

By utilizing pure fiber optic technology with zero copper components, the system ensures complete immunity to electromagnetic and radio frequency interference (EMI/RFI), guaranteeing uncompromised signal integrity and stability even over extended spans. Its manual EDID management allows for customized configuration to match specific display and source requirements, offering greater control in specialized AV setups.

Ideal for large-scale installations such as campus-wide video networks, remote broadcast links, transportation hubs, and secure surveillance systems, this transceiver provides a reliable, high-performance, and cost-efficient solution for critical environments where long-distance 4K signal integrity is essential.

Key Features

Long-Distance Transmission Capability
- Enables ultra-long-distance signal transmission of up to 80km using single-mode fiber, with a standard 10km configuration, ideal for cross-campus and city-wide AV projects.
Advanced EDID Management Function
- Features manual EDID management that can learn and store EDID information from the display, allowing for precise configuration to ensure compatibility in complex system setups.
High-Bandwidth Video Support
- Supports high-bandwidth 4K/60P (YUV 4:2:0) video format in addition to standard 4K/30P, catering to a wider range of ultra-high-definition content requirements via Single-Link DVI.
High-Fidelity Audio Transmission
- Transmits high-quality multi-channel audio, including 7.1 channel LPCM at 192kHz/24-bit, ensuring lossless audio delivery for professional applications.
Simplified Installation and Operation
- Plug-and-play operation simplifies setup, while the built-in equalizer (EQ) on the receiver automatically optimizes the signal for reliable performance.
Compact and Flexible Design
- Surface-mountable compact design facilitates easy and flexible installation in space-constrained environments such as equipment racks and control boxes.
Broad Compatibility
- Maintains support for 3D TV pass-through, ensuring compatibility with existing 3D content and display systems.
Specific Protocol Exclusion
- Does not support HDCP or CEC protocols, making it specifically suitable for non-encrypted professional AV applications such as medical imaging and industrial visualization.

Application Scenarios

Critical Infrastructure Monitoring: Ideal for extending 4K video surveillance feeds in transportation hubs, utility substations, and perimeter security systems over single-mode fiber links spanning up to 80km, enabling centralized monitoring from a secure command center.
Medical Imaging & Diagnostic Systems: Provides uncompressed transmission of non-HDCP medical imaging (e.g., MRI, CT scans) from diagnostic equipment to high-resolution reference displays in remote consultation rooms, ensuring diagnostic accuracy with EMI/RFI immunity.
Industrial Visualization & Control: Supports real-time process monitoring in industrial automation by transmitting 4K video from manufacturing cameras to control rooms kilometers away, unaffected by electrical noise in harsh plant environments.
Broadcast & Pro AV Contribution Links: Serves as a cost-effective video transport solution for temporary events, stadiums, or broadcast facilities requiring reliable 4K/30P SDI alternative feeds over existing fiber infrastructure without HDCP limitations.
Long-Distance Digital Signage Networks: Manages content distribution for digital signage applications across corporate campuses, highways, or smart cities, delivering 4K visuals to remotely located displays via fiber optic networks.

Technical Indexes

Parameter	Specifications
Compliance	DVI1.0,HDMI v1.4
Bandwith	10.2 Gbps
Supported Resolutions	3840x2160/30P,38402160/60P(YUV 420), 40962160/60P(YUV 420)
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
DVI Input / DVI Output	1x DVI-D 18+1 Male connector
Optical	1x SFP+ port
Cable
Fiber Cable	9/125μ Single-Mode Fiber:≤80Km(default 1.4km)
DDC Support
EDID Support	An EDID memory built into the Tx module can learn and store the display EDID info.
HDCP Pass-through Support	Does not support the HDCP and CEC
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	69mm x 42 mm x 18.2 mm
Net Weight	LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g
Environmental
Operating Temperature	32° to +112° F. (0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A
Power Consumption	LNK-D4K-SM-S: 3 watts LNK-D4K-SM-R: 3.5 watts
Warranty
Limited Warranty	1 year

Ordering information

Model	Description
LNK-D4K-SM-S	Mini 4KX2K DVI Fiber Sender Manual EDID,DC5V1A
LNK-D4K-SM-R	Mini 4KX2K DVI Fiber Receiver Manual EDID,DC5V1A
