10W 20W COFDM UAV Video Transmitter With AES256 Encryption And Low
Latency H.265
Key Features:
- COFDM modulation make it a perfect choice for Military and
Emergency communications.
- H.264/H.265 video compression.
- Full HD resolution, support multiple video formats.
- Supports two channel videos transmission synchronously(optional).
- High security with AES256 encryption.
- Modular design with excellent heat dissipation capability.
- Effective in NLOS and high-speed mobile environment.
Overview:

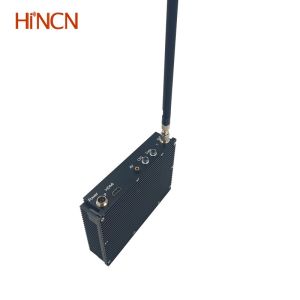

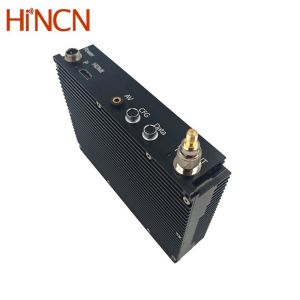

HCT531 UAV video transmitter is specifically designed for use with
HD or SD cameras, it's a outstanding miniature wireless video
transmitter, designed fto capture real time, high quality videos
from various devices, such as Point of View Cameras, UAV,UGV,Body
Cams,Concealments, and sport cameras.
The UAV video transmitter features HDMI or AV inputs, adopts COFDM
modulation technology and H.264/H.265 encoding, and is capable of
achieving low latency video audio transmission in high-speed
movement and NLOS (none line of sight) conditions, providing long
range, reliable HD wirless video transmission.
Technical Specifications:
| 10W 20W COFDM UAV Video Transmitter With AES256 Encryption And Low
Latency H.265 |
| Input/ Output interface |
| HD Video Input | HDMI Type-A connector |
| Composite Video Input | 3.5mm earphone connector |
| UART Data | YC8-3 connector,TTL3.3V by default(optional RS232) |
| TTL UART Control | YC8-4 connector,TTL 3.3V. |
| Power in | GX12-2 connector |
| RF output | TNC female |
| COFDM Wireless Modulation Transmission |
| Wireless modulation | COFDM(DVB-T) |
| IFFT mode | 2K |
| Wireless bandwidth | 1MHz~8MHz adjustable,1KHz step forward |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Constellation | QPSK, 16QAM, 64QAM |
| Wireless code stream | 0.5Mbps to 31.67Mbps( bites per second) |
| RF |
| Frequency | Specify central working frequency F0 with band width about
F0±15MHz, ranges available from 200~860MHz |
| Tuning Step Size | 1 KHz |
| Transmission power | 10W(40dBm) or 20W(43dBm) |
| Audio and video processing |
| Video input | HDMI or CVBS, auto-detected after system start-up Optional: two
channel video input/encoding/transmit at the same time |
| Video formats | 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@
50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC),
720*576 50I(PAL) |
| Video encoding | H265/H264 |
| Audio input | HDMI embedded audio or analog audio |
| Audio format | AAC, 16bit, stereo, 32Kbps |
| Encryption | AES256 |
| Monitoring and Control |
| Control | Comprehensive transmitter setup with our Parameter Configuration
module or PC or other device via Control UART. |
| Temperature Range |
| Full specification | 0° to +55°C Ambient |
| Storage | –40° to +80°C |
| Physical Characteristics |
| Size | 180*136*38mm(Excludes protruding connectors) |
| Weight | 906g |
| Power requirements |
| Input range | 24~30VDC(28V as default) |
| Power Consumption | <2.8A@24V(10W RF power) , <3.1A@24V(20W RF Power) |
| Latency | H265:200~300 ms; H264: 50~130 ms |
Interface Signal:
Frequently Asked Questions:
Q1. Does your 10 watts/ 20 watts COFDM Wireless video transmitter
support changing frequency to be 1.2G/ 1.4G?
A:The transmitter frequency range is 160MHz~2700MHz, but our COFDM
wireless receiver only supports 170~860MHz, so if you want 1.2G or
1.4G, We suggest to intall a frequency down converter at the
receiver end.
Q2. Does the wireless video transmitter support SDI video input?
A: Yes, We have different kinds of wireless video transmitters
support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input,
please just let us know what video type you prefer. We will
introduce them to you accordingly.
Q3. What's the max distance for the 10W PA transmitter?
A: For UAV application, the transmission range is about 100km, The
flight altitude of the UAV Drone is about 500 meters., and put the
antennas of receiver as high as possible.
Q4. Does your transmitter and receiver support standard DVB-T
protocol?
A: Yes, it supports 3 working modes:
- Standard DVB-T protocol, normal DVB-T can get the transmitter
signal, no encryption and decrryption function.
- COFDM protocol, support TX encryption and RX decryption, support
H265 and H264 encoding, but no super low latency.
- COFDM low latency protocol, H264 encoding with low latency, support
TX encryption and RX decryption function.
