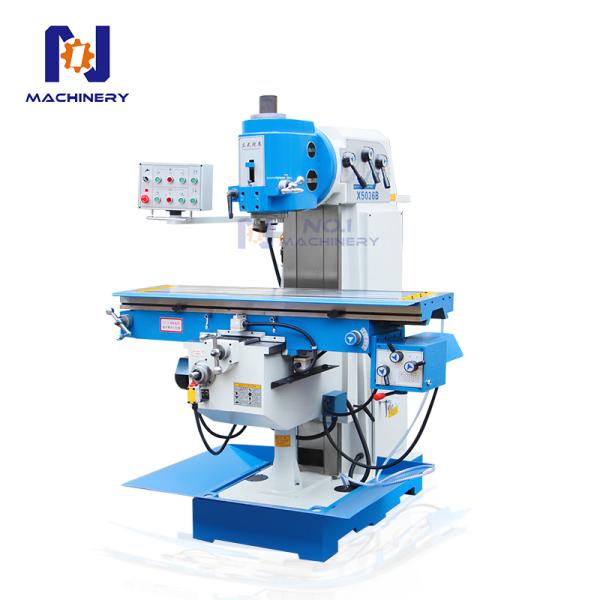

X5036B Manual Vertical Metal Milling Machine Vertical Single Spindle Milling Machine
The X5036 is a versatile and robust vertical milling machine. It features a rigid spindle for efficient milling of planes, bevels, grooves, and gears. With large longitudinal and cross table travel and strong load capacity, it is easy to operate and widely used in various machining and maintenance workshops.
Product features:
1. X/Y Axis Automatic Tool Feed & Z Axis Electric Lift:
The X and Y axes are equipped with automatic tool feed, allowing for precise and automated movement along these axes.
The Z axis features electric lift, enabling easy and controlled vertical movement.
2. Spindle Options:
X5036A: The spindle is fixed, meaning it does not move vertically.
X5036B: The spindle has a stroke of 70mm, allowing for vertical movement over this range.
3. Integrated Operation Panel:
The machine comes with an integrated operation panel, providing a centralized control interface for ease of use an operation.
4. Manual Oil Pump:
A manual oil pump is included for lubrication purposes, ensuring smooth operation and maintenance of the machine.
Standard Configuration:
Integrated Control Panel
X／Y automatic feed
Electric lift of Zaxis
Manual oil pump
X5036B spindle stroke 70mm
Product specification:
| Name | Unit | X5032 | X5036 |
| Table size | mm | 1500*320 | 1500*360 |
| Table travel | mm | 1000*320*400 | 1000*360*400 |
| Workbench maximum overload | kg | 200 | 300 |
| X direction (table longitudinal)manual /Auto | mm | 1000 | 1000 |
| Y direction (slide lateral)manual /Auto | mm | 320 | 360 |
| Z direction (lifting table vertical)manual /Auto | mm | 380 | 400 |
| Fast moving speed | mm/min | 15-370 | 15-370 |
| Spindle aperture | mm | 29 | 29 |
| Spindle speed range | rpm | 40-1300 | 60-1700 |
| Spindle speed series | steps | 18 | 12 |
| Maximum rotation angle of end mill head | ° | ±45 | ±45 |
| Spindle center to table distance | mm | 60-430 | 80-440 |
| Spindle motor power | kw | 4 | 4/5.5 |
| Dimensions | mm | 2294*1770*1904 | 1700*1680*1880 |
| Machine weigh (about) | kg | 1800 | 2200/2400 |

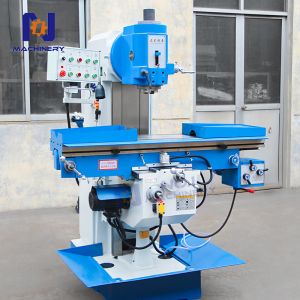

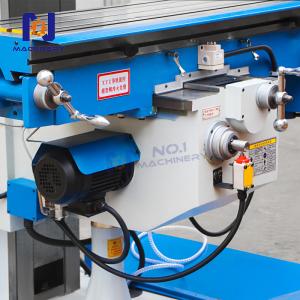

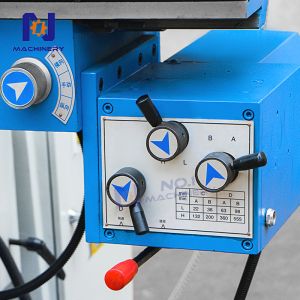

Details Display:
