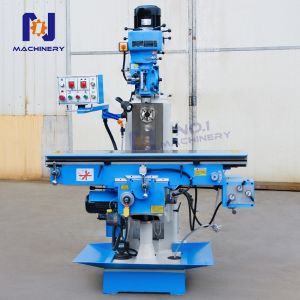

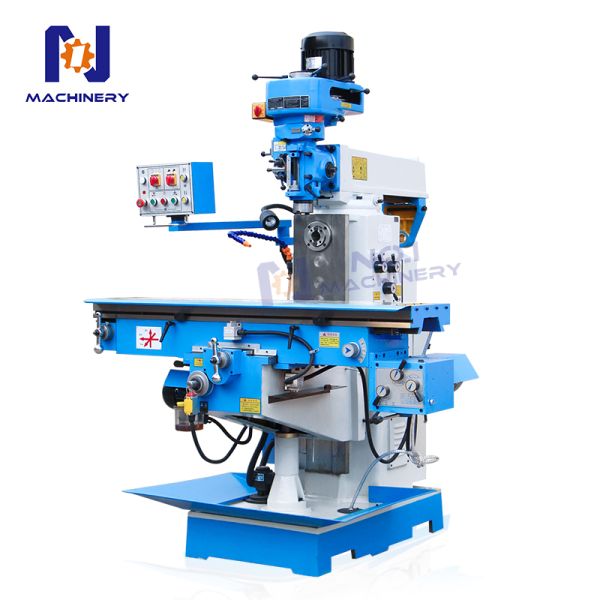

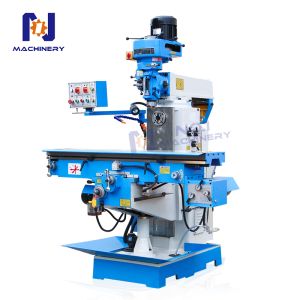

X6332P Turret Milling Machine Manual Multi Function Vertical Turret Milling Machine
The milling machine is a broad-spectrum tool type milling machine, it can undertake vertical milling, horizontal milling, drilling and boring, reaming and grinding and other processing work.
These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry.
The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B±45ºand L-R ±90ºand the rocker can move front and back on the upper bed and can swing 360º.
The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life.
Product features:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent
Standard Configuration:
Integrated Control Panel
X／Y automatic feed
Electric lift of Zaxis
Taiwan turret milling head
Three-axis rectangular guide rail
Optional Configuration:
electronic oil pump
dividing head
rotary table
tool
clamping kit
Three-axis DRO
pneumatic draw bar
Product specification:
| PARAMETER ITEM | UNIT | X6332P | X6336P |
| Size of worktable | mm | 1500x320 | 1500x360 |
| Table travel | mm | 1000/320/400 | 1000/360/450 |
| T-groove | - | 3-14x70 | 3-18x80 |
| Vertical spindle taper | - | R8 | MT40 |
| Horizontal axis taper | - | ISO40 | ISO40 |
| Spindle speed range | rpm | 50HZ:65-4500 / 60HZ:80-5440 | 50HZ:65-4500 / 60HZ:80-5440 |
| Horizontal axis speed range | - | 40-1300 | 60-1800 |
| Spindle stroke | mm | 127 (V) | 127(V) |
| Spindle feed range | mm | 0.045,0.086,0.142 | 0.045,0.086,0.142 |
| Distance from spindle face to table | mm | 140-540 | 140-590 |
| Distance from end face of horizontal shaft to table | mm | 0-400 | 0-450 |
| Main motor power | kw | 3HP/3kw | 5HP/4kw |
| Weight of machine tool | kg | 2000 | 2400 |
| External dimensions | mm | 2200x1820x2350 | 2600x2200x2550 |

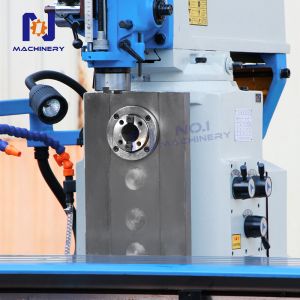

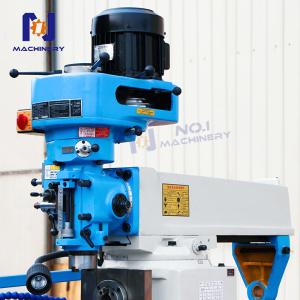

Details Display:
