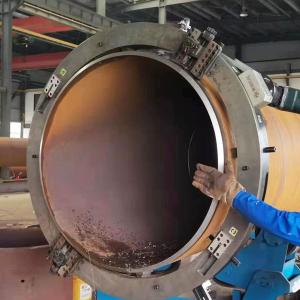

OD830 Pipe Cutting and Beveling Machine 26 to 32 Inch Heavy Duty
Cold Cutting Tool
The OD830 Pipe Cutting and Beveling Machine accommodates pipes from
26" to 32" (660–830 mm). Designed for large-diameter pipe work, it
ensures maximum stability and machining precision in demanding
environments. Its advanced clamshell design reduces setup time and
enhances safety during cutting and beveling operations. The OD830
is capable of producing consistent bevel profiles required for
welding in critical applications. Widely used in the oil & gas
sector, shipbuilding, and heavy industrial plants, this model
provides excellent adaptability with its multiple drive systems and
versatile tooling configuration.
SPECIFICATIONS
| Item | ODM830 (Electric) | ODP830 (Pneumatic) | ODH830 (Hydraulic) |
|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 660–830 mm (26"–32") | 660–830 mm (26"–32") | 660–830 mm (26"–32") |
| Wall Thickness | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm |
| Wall Thickness | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
PRODUCT ADVANTAGES
Why Choose the OD830 Pipe Cutting and Beveling Machine?
High-Performance Cutting
Ensures clean, burr-free pipe edges for welding and assembly.
Sturdy and Reliable
Built with reinforced materials to endure harsh field conditions.
Wider Pipe Coverage
Capable of machining pipes up to 830 mm OD for large-scale
projects.
Accessory Expansion
Can be equipped with a range of accessories to maximize
versatility.
Operator Friendly
Lightweight body with ergonomic design ensures easier handling
on-site.
SELECTION GUIDE
Please follow the guidelines below or provide us with your specific
requirements so that we can offer you the most professional model
selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist
of a main body ring and a rotating gear ring. The gear ring is made
of heat-treated alloy steel, while the main body ring can be
selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting
equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for
heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves
for manual handling, regardless of whether it is aluminum or steel.
For model OD610 and above, if manual handling is required, we
recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications.
Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof
requirements. However, performance may be affected if the air
supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure
greater power. Please note, however, that hydraulic stations are
costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide.
For wall thickness >30 mm, use the heavy wall tool slide, as
different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits,
such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper
toolbits and the number of toolbits required.
PIPE CUTTING AND BEVELING MACHINE SELECTION TABLE
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD830 Pipe Cutting and Beveling Machine Application Industries
Extensively used in large-diameter oil pipelines, this machine
ensures reliable cold cutting without distortion. In nuclear
reactor facilities, it guarantees weld integrity under strict
safety codes. Port ship maintenance teams apply it for oversized
pipe joints. In chemical reactors, it handles corrosion-resistant
steel machining. It is also effective in offshore engineering
projects, solving problems of heavy pipe beveling in remote areas.
