V100-HSA series high-performance angular black water regulating valve

Name: V100HSA series highperformance angular black water regulating valve
Brand: WEYO
Price: 1 USD

Ask Lasest Price
Brand Name :	WEYO
Model Number :	V100-HSA series
Certification :	ZL 2007 1 0171793.3
Payment Terms :	T/T, L/C
Supply Ability :	5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :	7 - 15 days for small orders. 15 - 30 days for large orders

Add to Cart

Product Details
Company Profile

V100-HSA series high-performance angular black water regulating valve

The V100-HSA series high-performance angular black water regulating valve is a patented product researched and invented by relevant personnel of our company. The invention patent number is ZL2007 1 0171793.3, and it has the following characteristics:The streamlined design structure of the valve body cavity adopts the IEC534 standard, which avoids the impact of particulate media on the inner wall of the valve body;The valve body adopts a balanced self circulating treatment structure with fluid medium self isolation, which avoids a large number of coal powder particles from entering the valve stem and packing part, effectively solving the valve leakage caused by wear and tear.The valve has a self-cleaning function, and the design of the valve guide part adopts an anti garbage tank treatment structure, which can effectively prevent particles in the fluid from entering the gap between the guide sleeve and causing the valve to jam; At the same time, there is a steam interlock flushing hole on the valve cover. When the valve is switched or stopped, the scaling and coal powder condensation on the packing side of the valve stem can be manually or automatically cleaned to prevent the valve from getting stuck due to coal powder condensation.The valve guide part adopts a special scraper design to prevent scaling.The valve adopts a quick detachable structure, which is easy to install, disassemble and replace components.The valve adopts an anti rotation structure design to prevent the valve core

fromrotating under high flow medium conditions, effectively preventing faults caused by displacement or detachment of accessories such as locators due to the rotation of the valve core.The valve core and valve seat are made of integral tungsten carbide material, which greatly improves the service life of the valve core and valve seat.The valve seat adopts a downward compression structure, ensuring the reliability of the product and facilitating its maintenance.The outlet section of the valve body adopts a tungsten carbide material guide pipe design, which prevents damage to the outlet section of the valve body caused by high speed fluid (including hard particles) impact and cavitation.The valve is designed with a downward movement of the guiding part, effectively preventing lateral vibration under high

pressure difference of the valve.The use of high thrust piston actuators can effectively improve the pressure resistance and other capabilities of valves.The connection between the valve and the actuator adopts a clamp structure, which is convenient for fastening and disassembling.

Rated Cv and Stroke

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
2〞	1〞	14	20	8〞	5〞	280	60
	1.5〞	33	20		6〞	400	60
	2〞	50	30		7〞	500	70
2.5〞	1〞	14	20		8〞	640	80
	1.5〞	33	20	10〞	6〞	400	60
	2〞	50	30		7〞	500	70
	2.5〞	70	30		8〞	700	80
3〞	1.5〞	33	20		10〞	1000	90
	2〞	50	30	12〞	7〞	500	70
	2.5〞	70	30		8〞	700	80
	3〞	120	40		10〞	1000	90
4〞	2〞	50	30		12〞	1600	100
	2.5〞	70	30	14〞	8〞	700	80
	3〞	120	40		10〞	1000	90
	4〞	200	40		12〞	1600	100
6〞	3〞	120	40		14〞	2200	120
	4〞	200	40
	5〞	280	60
	6〞	400	60

FLOW CHARACTERISTICS

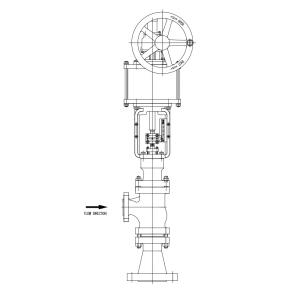

External Dimensions

Nominal Diameter		L			H1	H2		L	H1	H2
Nominal Diameter		150LB	300LB	600LB		standard	Fin- Exten sion type	900LB		standard	Fin- Exten sion type
INCH	DN	RF				standard	Fin- Exten sion type	RF		standard	Fin- Exten sion type
2	50	127	134	143	90	156	256	188	125	223	293
21/2	65	138	146	156	105	195	295	205	150	236	306
3	80	149	159	169	125	210	310	221	160	295	365
4	100	176	184	197	140	235	335	256	195	334	404
6	150	226	237	254	195	326	396	357	270	485	555
8	200	272	284	304	240	385	455	457	300	499	569
10	250	337	354	376	290	392	462	496	360	580	650
12	300	369	388	410	330	493	563	565	420	630	700
14	350	450	464	486	380	550	620	628	510	720	790

Actuator Size	S	P	Q
8＂	260	540	350
12＂	370	606	393
16＂	472	626	450
20＂	600	720	560
