IRV10·20 Series Vacuum Regulator with 1.0PMA Pressure and Max.flow 240 L/min for Pneumatic Tools

    Buy cheap IRV10·20 Series Vacuum Regulator with 1.0PMA Pressure and Max.flow 240 L/min for Pneumatic Tools from wholesalers

    Buy cheap IRV10·20 Series Vacuum Regulator with 1.0PMA Pressure and Max.flow 240 L/min for Pneumatic Tools from wholesalers
    • Buy cheap IRV10·20 Series Vacuum Regulator with 1.0PMA Pressure and Max.flow 240 L/min for Pneumatic Tools from wholesalers

    IRV10·20 Series Vacuum Regulator with 1.0PMA Pressure and Max.flow 240 L/min for Pneumatic Tools

    Ask Lasest Price
    Brand Name : NBSANMINSE
    Model Number : IRV20-C08
    Supply Ability : 10000PCS
    Delivery Time : 5-30days
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    • Product Details
    • Company Profile

    IRV10·20 Series Vacuum Regulator with 1.0PMA Pressure and Max.flow 240 L/min for Pneumatic Tools

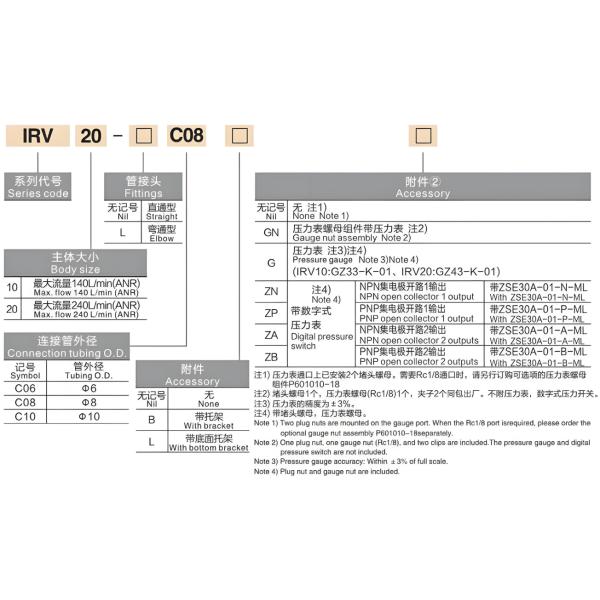

    IRV20C08
    Series codeBody sizeFittingsConnection tubing O.D.AccessoryAccessory

    10Max.flow 140 L/min (ANR)NilStraightSymbolTubing O.D.NilNoneNilNon Note 1)

    20Max.flow 240 L/min (ANR)LElbowC06Φ6BWith bracketGNGauge nut assembly Note 2)





    C08Φ8LWith bottom bracketG(IRV10:GZ33-K-01,IRV20:GZ43-K-01)





    C10Φ10

    ZN

    Note:4

    Digital pressure switch

    NPN open collector 1 outputWith ZSE30A-01-N-ML









    ZPPNP open collector 1 outputWIth ZSE30A-01-P-ML









    ZANPN open collector 2 outputsWith ZSE30A-01-A-ML









    ZBPNP open collector 2 outputsWith ZSE30A-01-B-ML

    Precautions for vacuum pressure reducing valves?

    1.The pressure reduction principle of vacuum pressure reducing valves is similar to that of pressure reducing valves for positive pressure. What is reduced is the pressure at the set port, not the pressure generated by the generator itself.

    2.For working conditions where the transported workpiece requires a large flow rate, IRV cannot be used, because IRV itself has a relatively small flow rate and cannot meet large-flow occasions.

    3.IRV needs to suck in air during operation, so small generators with low own flow rate cannot be used.
    4.IRV needs to frequently suck in air for pressure reduction, so it cannot be used in occasions with dust, water vapor, etc.
    5.IRV cannot maintain pressure. Once the vacuum at the inlet disappears, the set vacuum pressure at the outlet will also disappear.
    6.Because it is a mechanical structure, frequent pressure fluctuations at the outlet or inlet will cause the set pressure to drift. If the pressure drift affects the use of the equipment, please reset the pressure regularly.
