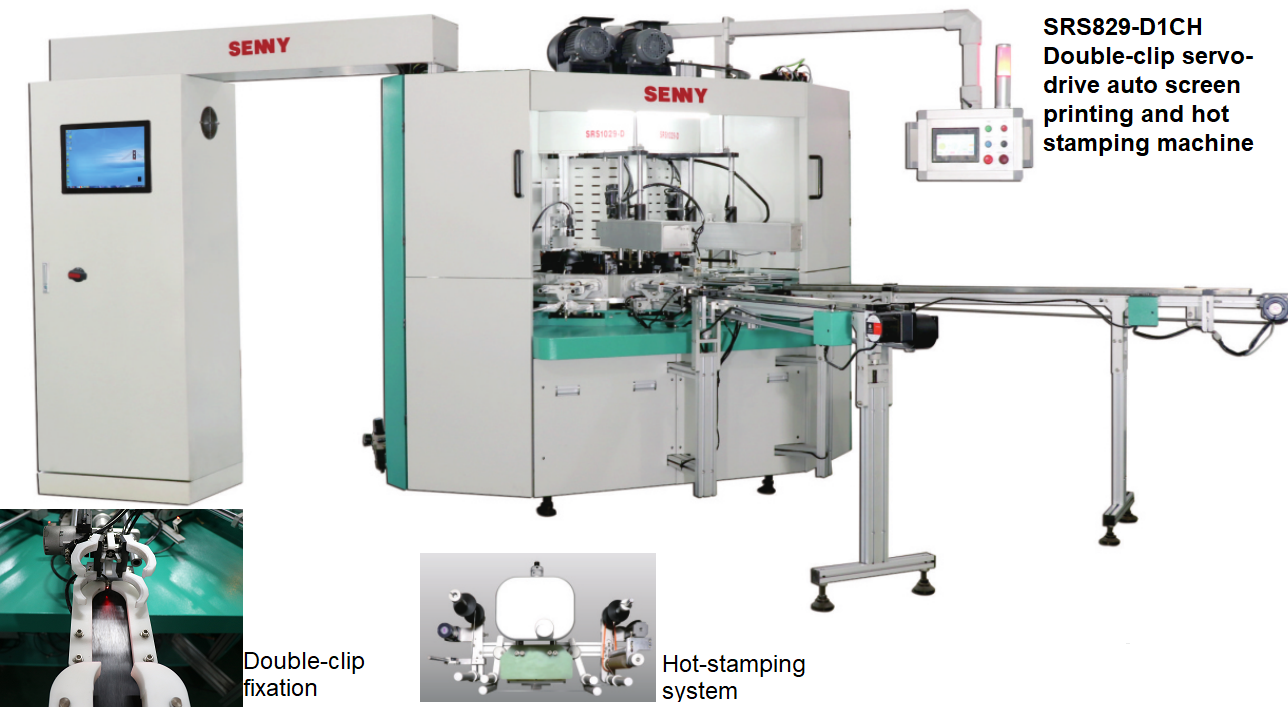

2 Color Bottles And Jars Screen Printer Workable For Various Shapes
8 Station
Product features:
This machine is suitable for printing UV inks of various colors on
plastic, metal, glass, ceramic bottles and cans of various shapes.
The machine adopts digital control servo drive to complete various
functions and printing, which can easily realize 360 degree
printing for various shapes of products.
The machine adopts integrated turntable structure, the products are
rotated to different stations in one fixture to realize the
functions of feeding, positioning, surface treatment, printing,
curing and discharging. The products are not easy to grind and the
printing accuracy is up to ±0.1mm.
The machine can be connected with hot stamping or labeling module
to become a multifunctional printing line of screen printing plus
hot stamping or labeling.
The machine can be installed with finished product inspection
function to divert unqualified products instead of manual
inspection.
Feeding conveyor can be directly connected with bottle making
equipment or with automatic bottle trimmer to replace manual
feeding.
After printing, the discharge can be connected to bagging machine
instead of manual bagging.
Technical Specifications:
| Specification/Model | SRS829 | SRS1039 | SRS1249 | SRS1669 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–65mm |
| Height of bottle | 20–220mm |
| Printing length | 200mm |
| Printing height | 120m |
Applications:
SRS829 CNC Small Container UV Screen Printing Machine is a UV
screen printing machine for small containers. The printing scope is
very wide and it can be used for screen printing of many small
containers such as lids, bottles, eyebrow pencils, syringes, etc.
Printing sample
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004,
it is specialized in designing and manufacturing precise automatic
screen printing machines, stick labler machines, hot stamping
machines and auxiliary equipments. Meanwhile, they can design any
kinds of automatic printing machines according to customers'
requirements.
SENNY has very good designers. The founder of SENNY was engaged in
designing and developing screen printing machines early from the
year 1994, and he got many achievements: he designed the first
automatic screen printing machine; automatic screen printing
machine for big iron pails; four colors sereen printing machine for
big oil kettles; automatic screen printing machines controlled by
module independently for bottles; automatic screen printing machine
for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of
the similar products in or abroad, and we also take customers'
comments and suggestions into consideration. With the innovation
and improvement for many years, the products produced by SENNY now
are in a leading position in the domestic markets. And it also
sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY
insists on providing high--quality products and services,
dedicating to exploring the new markets and seeking for mutual
benefit and win-win state with our customers.
