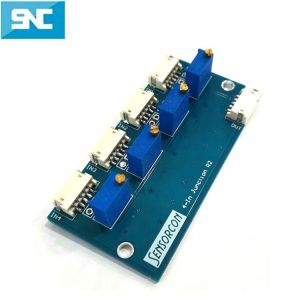

IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring

    Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers

    Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers
    • Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers
    • Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers
    • Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers
    • Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers
    • Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers
    • Buy cheap IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring from wholesalers

    IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring

    Ask Lasest Price
    Model Number : hx711 module
    Brand Name : Sensorcon
    Price : $10/units 1-99 units
    • Product Details
    • Company Profile

    IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring

    Load Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 module

    Load Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 module


    Load Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 moduleLoad Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 moduleLoad Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 module

    Load Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 module

    Product Overviews

    Description

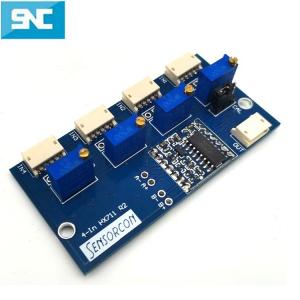

    The JB4-HX711 is an amplifier for load cells and strain gauges. It combines the functionality of the HX711C and the JB4 to simplify weighing installations. Multiple load cell outputs are summed and it uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system.


    Features

    • 24-bit Analog to Digital converter with programmable Gain
    • 2-wire Serial Interface
    • Selectable data rate of 10Hz or 80Hz
    • Plug and play connectivity with on-board connectors
    • Arduino / Raspberry Pi compatible
    • Low-power operation in Power Down Mode

    Applications

    • Weight systems
    • Stress testing machines
    • Commercial sensing machines
    • vending machine.
    • smart shelf.

    Accessories

    • Cables with matching connectors


    INTERFACE

    Wheatstone Bridge


    AVIALABLE ACCESORIES

    Extra cable with connectro on one side or on both sides. Depends on your requirement.

    DIMENSIONS
    64 x 32 x 10 mm

    SPECIFICATION

    Power Supply2.6 – 5.5V
    Nominal Current1.5mA
    Power Down Current0.5uA
    Common Mode InputGND + 1.2V VCC – 1.3V
    Output Settling Time400 ms
    Input Offset Drift(Gain = 128)0.2 mV
    Temperature Drift(Gain = 128)±5 ppm/°C
    Input Common Mode Rejection (Gain = 128)100 dB
    Power Supply Rejection (Gain = 128)100 dB

    ELECTRICAL PARAMETERS

    ParameterValueUnit
    Power Supply Voltage
    (VCC)
    5 – 12VV
    Nominal Current> 1mA

    CONNECTION

    REDExcitation +
    BLACKExcitation -
    WHITEOutput -
    GREENOutput +
    YELLOWShield
