Product Introduction
THE POPULAR SPECIFICATIONS OF STEEL GRATING
The grating with a pitch of 30mm between bearing bars is the most
widely used type in the industrial field. Among normal types, it
has the strongest resistance to surface lash.
The grating with a pitch of 40mm between bearing bars is the most
economical and lightest type. lt is the best choice for you on
occasions when the span is small.
The grating with a pitch of 60mm between the bearing bars and a
pitch of 50mm between the cross bars is developed especially for
the mining industry, it solved the problem of a mineral splash on
the plate. So it is often appointed for use in processing works of
the mining industry.
The grating with a pitch of 30mm between bearing bars and of76mm
between cross bars is the most popular type used at home and
abroad, it is proper for many applications such as walkways,
platforms, etc.
STAINLESS STEEL GRATING - 304 & 316 MATERIALS FOR CORROSIVE
PROJECTS
Stainless steel grating is regarded as industrial-grade bar
grating, which is extremely strong, durable, and corrosive
resistant for all load-bearing applications and is primarily used
for pedestrian and light vehicle traffic.

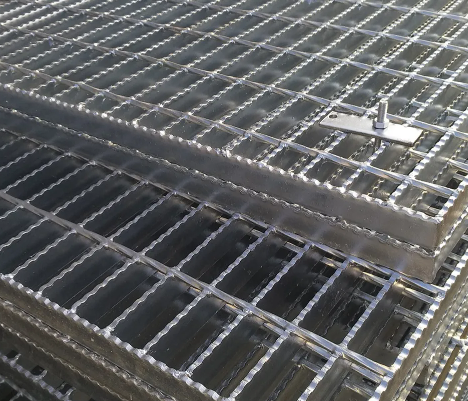

- Both in Smooth or serrated surface.
- 304 or 316 grade for choice.
- Wide range of bearing bar sizes and pitches.
- Special discount for large orders.
- Project references can be supplied for your bid.
- ISO Certificated factory.
- CAD or 3D drawings can be supplied for your design and
construction.
Applications
It can provide durable grating solutions for corrosive resistance
and minimum carbide precipitation are important considerations,
typical applications include stairs and platforms for chemical
production and storage, food processing, and water and wastewater
treatment plant.
Dimensions
- Material: stainless steel 304, 304L, 316, 316L.
- Finish: mill finish, commercial clean, and electro-polished.
- Bearing bar spacing: ranging from 1-3/16" to 11/16".
- Cross bar spacing: 2" or 4" on center.
| Type | Description | Tensile Strength | Yield |
|---|
| 304 | Good corrosion resistance, high tensile strength, excellent for
chemical processing, food industries, power plants, and wastewater
treatment. Used in high-temperature applications | 75,000 psi (min.) | 30,000 psi (min.) |
|---|
| 316 | Better corrosion and pitting resistance than type 304, and good
heat resistance, used in chemical, pulp, and paper processing,
marine environments, textile equipment, and petroleum refining. | 75,000 psi (min.) | 30,000 psi (min.) |
|---|
| Metric Legend | Imperial Legend |
|---|
U = Safe Uniform Load (kPa)
C = Safe Concentrated Load (kN/meter of grating width)
D = Deflection (mm) | U = Safe Uniform Load (lbs./ft2)
C = Safe Concentrated Load (lbs./foot of grating width)
D = Deflection (inches) |
