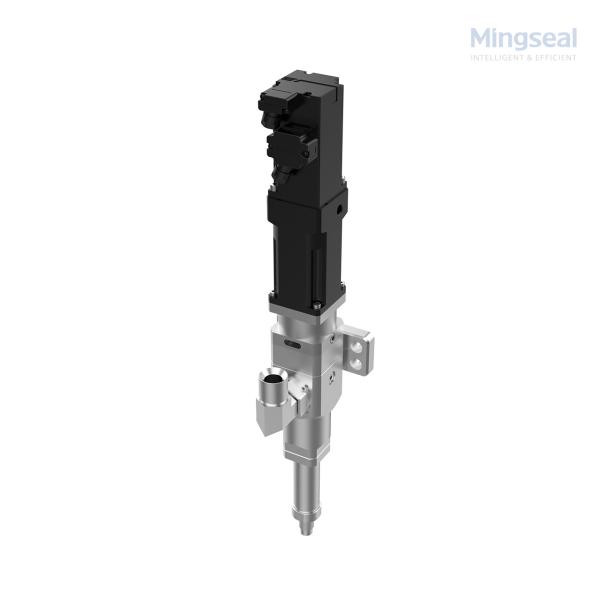

KSP1000 High precision Single-component 1K screw dispensing valve
for EV application
The KSP series is a precision positive displacement
single-component screw valve suitable for high-precision
single-component fluid distribution applications, and can perfectly
distribute low, medium and high viscosity fluids.
Designed for precision, the single-component eccentric screw valve
delivers stable and clean dispensing for demanding applications
such as EV electronics, ECU sealing, and thermal interface bonding.
It handles thick, abrasive, and sensitive materials with ease,
ensuring smooth, drip-free dispensing without shear damage. Whether
used in motor sealing or PCB potting, this valve offers unmatched
consistency, easy integration into automation systems, and long
service life—making it a top choice for high-performance
manufacturing.
Core Advantages
Low shear, low bubble generation
The dispensing process does not cause severe shearing of the
material, and is suitable for colloids that are sensitive to
bubbles or shear (such as thermal conductive glue, UV glue, etc.).
Micro-dispensing is possible, and large flow feeding is also
supported
Depending on the stator model, precise control from micro (<1μL)
to large flow (>10ml/min) can be achieved.
Servo motor drive, high control accuracy
Combined with a high-precision servo system, the dispensing rate
and amount of glue can be flexibly adjusted through the program,
which is convenient for integration with automated production
lines.
Compact structure, easy to maintain
Modular design, easy to disassemble and clean, convenient to
replace the stator and rotor, greatly reducing maintenance costs
and downtime.
Appliacations
- Electric Drive/Electric Control Shell Sealing
- Central Control Screen Structure Bonding
- Lidar Window Bonding
Technical parameters
| One-component screw valve |
| Model | KSP1000 |
| Glue output per circle(ml) | 1 |
| Flow rate (mL/min) | 1~20 |
| Measuring accuracy | ±3% |
| Matching controller | KSC3000-S |
| Operating pressure | 0~0.6MPa |
| Maximum output pressure | 2.0MPa |
| Viscosity range | 1~1,000,000cPs |
| Motor speed | 1~60rpm |
| Rotor material | Ceramic |
| Stator material | FKM/FFKM/EPDM |
FAQ
1. What is the expected service life of the valve?
With proper maintenance, especially using wear-resistant stator
materials like FFKM, the valve can support long-term, high-volume
use with minimal downtime.
2. How easy is maintenance and cleaning?
The valve is designed for fast disassembly and cleaning. Its
modular structure allows for quick stator/rotor replacement without
full system teardown.
3. Can it support both large-volume and fine-line applications?
Yes. By selecting different rotor-stator sizes, the valve can
switch between high-flow dispensing and middle-volume dispensing.
