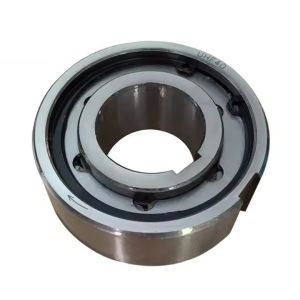

UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch

    Buy cheap UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch from wholesalers

    Buy cheap UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch from wholesalers
    • Buy cheap UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch from wholesalers
    • Buy cheap UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch from wholesalers
    • Buy cheap UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch from wholesalers
    • Buy cheap UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch from wholesalers

    UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch

    Ask Lasest Price
    Brand Name : SFT
    Model Number : UHF 40
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 20-45DAYS
    • Product Details
    • Company Profile

    UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch

    UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch

    Product Description

    UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch Data Sheet

    Item UHF
    Material GCr15
    Inner diameter 40 mm
    Outer diameter 80 mm
    Width 39 mm
    Weight 0.823 kg
    Nominal torque 429 Nm
    Port Shanghai;Ningbo
    Delivery time 10-20 days
    Application railway,automobile,office equipments,paper-making equipments,etc

    Different Sizes For Your Reference

    UHF40 ASNU40 Clutch Backstop Bearing One Way Freewheel Clutch

    Type Dimension Keyway(outer
    ring)
    Keyway(inner ring) Nominal
    torque
    Nm
    Weight
    kg
    d D B B×t B1×t1
    UHF12 12 37 20 6×2.5 4×1.7 42 0.115
    UHF14 14 42 19 5×1.6 5×2.3 46 0.139
    UHF16 16 42 19 5×1.6 5×1.7 47 0.132
    UHF17 17 47 19 6×2 5×2.3 75 0.167
    UHF18 18 60 20 6×2.5 6×2.5 105 0.287
    UHF20 20 60 20 6×2.5 6×2.7 105 0.277
    UHF25 25 62 24 8×2.5 8×2 142 0.285
    UHF30 30 72 27 10×2.6 8×2 227 0.513
    UHF35 35 80 31 12×4 10×2.5 230 0.718
    UHF40 40 80 39 12×2.8 10×2.5 429 0.823
    UHF45 45 105 36 14×3 10×3 572 1.6
    UHF50 50 130 36 14×5 14×3.8 690 2.49
    UHF60 60 130 46 14×5 14×3.5 1030 2.88
    UHF70 70 150 46 14×5 14×3.5 1470 4.6
    UHF90 90 180 90 -- 25×5.4 3281

    11.11
