Product Description:

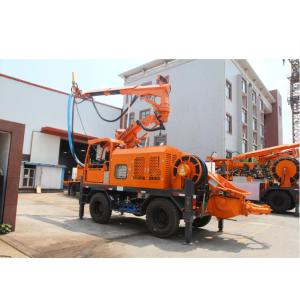

The KC2012W/2513WJ Wet Shotcrete Machine is a reliable tool for
concrete spraying projects in underground tunnels, culverts, and
subways. With its wireless remote control, it is easy to operate
and control the spraying process with accuracy. This machine is
suitable for medium and small working sections of concrete spraying
projects.
If you are looking for a highly efficient and safe shotcrete
machine, the KC2012W/2513WJ is an ideal option. It comes with an
external air compressor that helps to maintain a steady pressure
during the spraying process. This ensures that the concrete mixture
is evenly sprayed, and the end result is a smooth and polished
surface.
The wireless remote control feature of this machine makes it easy
to adjust the spraying density and rate, which significantly
reduces the labor required. Overall, with the KC2012W/2513WJ Wet
Shotcrete Machine, you can achieve high-quality finishes while
saving time and money.
Features of KC2012W/2513WJ Wet Shotcrete Machine:
- External air compressor
- Wireless remote control
- Suitable for medium and small working sections
- Efficient and safe
Features:
Advanced and reliable technology has been applied in the design of
our electro-hydraulic proportional system. Our technology includes
PLC control and auto-achievement of the speed change of setting
pump. This ensures that the output of the pump is adjusted to match
that of the concrete in a precise and efficient manner.
Our long reach spray boom technology allows our equipment to work
at great heights over long distances. This technology is ideal for
working in areas that are hard to access such as bridges, tunnels,
and high-rise buildings.
The 3-PRES spray head technology is designed with a full spherical
spray area without any blind spots. This is achieved by providing
consistent and uniform coverage to all areas of the surface being
sprayed.
The fully hydraulic foldable and telescopic intelligent spray boom
ensures that there is no interference when all boom sections are
working simultaneously. Our technology minimizes the margin of
error, increasing the efficiency of your concrete spraying project.
Our equipment is designed with a minimal height and rotation
radius, and 4-wheels crab swing, making it ideal for working in
limited and complex conditions on construction sites. Our
technology adapts to even the most challenging of work
environments.
Technical Parameters:
Machine Specifications
| No. | Item | KC2012W |
|---|
| 1 | Complete machine | |
| Weight(T) | 10 |
| Travelling speed(km/h) | 0～15 |
| Grade ability(°) | 25 |
| Approach/departure angle(°) | 21/21 |
| Ground clearance(mm) | 245 |
| Steering | 4 wheel driving/steering/crab |
| Traveling mode | wheels |
| Outside dimension(L×W×H)(mm) | 5900×2000×2650 |
Pumping System Specifications
| No. | Item | KC2012W |
|---|
| 2 | Pumping system | |
| Theoretical pump capacity (m³/h) | 4～20 |
| Filling height(mm) | <1200 |
| Max.aggregate size(mm) | ≤16 |
| Max. theory outlet pressure (MPa) | 7 |
| Pipe diameter(mm) | 100 |
| Concrete cylinder diameter(mm) | 160 |
| Concrete cylinder moving distance(mm) | 800 |
| Hydraulic cylinder(cylinder diameter/pole diameter)(mm) | 80/55 |
| Hydraulic cylinder moving distance(mm) | 800 |
| Hopper capacity(L) | 300 |
| Max.theoretical horizontal deliver distance(m) | / |
| Max.theoretical vertical deliver distance(m) | / |
Motor Specifications
| No. | Item | KC2012W |
|---|
| 3 | Motor | |
| Rated Power(kW/rpm) | 45/1480 |
| Rated voltage(V) | three-phase/380(optional) |
Engine Specifications
| No. | Item | KC2012W |
|---|
| 4 | Engine | |
| Mode | 4 cylinder liquid-cooled diesel engine |
| Rated power(kW/rpm) | 60/2200 |
| Diesel tank volumn (L) | 80 |
Air Compressor Specifications
| No. | Item | KC2012W |
|---|
| 5 | Air compressor | |
| Mode | / |
| Rated Power((kW) | /(outsourcing) |
| Max.wind flow(m³/min ) | >10 (required inlet flow) |
| Exhaust pressure(MPa) | >0.5(required inlet pressure) |
Shotcrete Boom Specifications
| No. | Item | KC2012W |
|---|
| 6 | Shotcrete Boom | |
| Boom mode | foldable + rotate + telescopic |
| Max.spary area Upward(m) | 11 |
| Max.spary area Forward(m) | 9.6 |
| Max.spary area Downward(m) | 3.8 |
| Max.spary area Width(m) | 19.2 |
| Min.spary area Upward(m) | 4 |
| Min.spary area Forward(m) | 2～3 |
| Min.spary area Downward(m) | 0 |
| Min.spary area Width(m) | 6 |
| Main boom rotate angle(°) | 270 |
| Main boom tilt angle(up/down)(°) | 60/25 |
| Main boom telescopic length(mm) | / |
| Telescopic boom rotate angle(°) | 360 |
| Telescopic boom tilt angle(up/down)(°) | 65/25 |
| Telescopic boom stretch length(mm) | 2600 |
| Nozzle rotate(°) | 360 |
| Nozzle swing (°) | 240 |
| Nozzle brush(°) | 360 continuous |
| Nozzle diameter(°) | 80 |
Additive System Specifications
| No. | Item | KC2012W |
|---|
| 7 | Additive system | |
| Flow rate(L/h) | 60～600 |
| Working pressure(MPa) | 1.2 |
| Tank volumn(L) | 200 |
| Suction length(m) | 3m |
| Motor rated power(kW) | 1.5 |
Cleaning System Specifications
| No. | Item | KC2012W |
|---|
| 8 | Cleaning System | |
| Flow rate(L/min) | 14 |
| Working pressure(MPa) | 14 |
| Motor rated power(kW) | 4 |
Electric System Specifications
| No. | Item | KC2012W |
|---|
| 9 | Electric System | |
| Operate mode | wireless romote control |
| Control mode | PLC + touchscreen display |
Cable Reel Specifications
| No. | Item | KC2012W |
|---|
| 10 | Cable Reel | |
| Cable length(m) | 80 |
| Power Source(V/Hz) | 380/50(optional) |
| Electric current(A) | 400 |
Applications:
This Robotic Cement Spraying Equipment is ideal for use in a
variety of occasions and scenarios, including underground mining,
tunneling, slope stabilization, swimming pool construction, and
more. With a minimum order quantity of just one unit and a
negotiable price, the POTENTIAL / POTENCY Robotic Shotcrete
Spraying Machine is accessible to businesses of all sizes and
budgets.
The POTENTIAL / POTENCY Robotic Shotcrete Spraying Machine is
designed for maximum efficiency and performance. With an engine
rated power of 60KW/2200rpm and a motor rated power of
45KW/1480rpm, it can produce up to 20~25 cubic meters per hour of
concrete spray. Its 4-wheels driving and articulated steering
provide superior traction and maneuverability, while its travelling
speed of 0～15km/h allows it to quickly cover large areas of ground.
When it comes to packaging and delivery, the POTENTIAL / POTENCY
Robotic Shotcrete Spraying Machine is shipped in 1 unit per 1*40'HQ
container, and has a delivery time of 45 working days. Payment
terms for this product include T/T and L/C, and the supply ability
is 180 units per year.
Overall, the POTENTIAL / POTENCY Robotic Shotcrete Spraying Machine
is an excellent choice for businesses that need a reliable,
efficient, and high-performance concrete spraying solution. Its
versatility and precision make it ideal for a wide range of
applications, while its quality and durability ensure that it will
provide years of reliable service.
Customization:
Customize your Robotic Shotcrete Machine with our product
customization services. Our machine is available under the brand
names of POTENTIAL and POTENCY with Model Numbers KC2012W and
2513WJ respectively. It is a high-quality Robotic Concrete Spraying
Robot that is designed to provide precise and efficient results.
Our Automatic Wet Shotcrete Machine is manufactured in CHINA and is
ISO9001:2015 certified, ensuring the highest quality standards.
You can order a minimum of 1 unit of this Robotic Sprayed Concrete
Machine at a negotiable price, and we will deliver it to you in a
1*40'HQ packaging within 45 working days. We accept payment terms
of T/T and L/C, and our supply ability is 180 units per year.
The Travelling Speed of our Robotic Shotcrete Machine can reach up
to 0～15km/h, with a Max Output of 20~25 Cubic Meters Per Hour. It
has a Motor Rated Power of 45KW/1480rpm and is available in both
Electric Motor and Diesel Engine options.
So, whether you are looking to customize the item KC2012W or
2513WJ, we have got you covered with our top-notch product
customization services.
Packing and Shipping:
Product Packaging:
- Robotic Shotcrete Machine
- Remote Control
- Power Cord
- User Manual
Shipping:
- Shipping Method: Standard
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: Free
- Tracking Number: Provided
