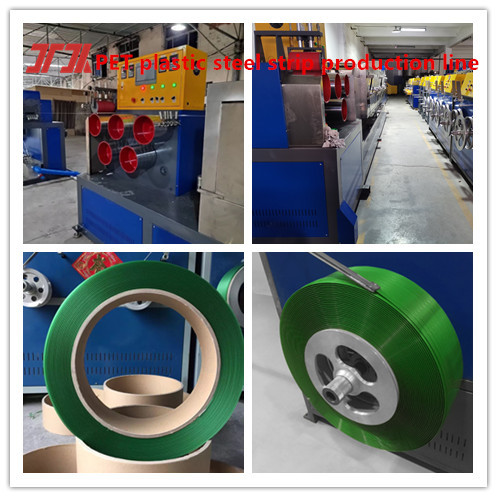

Supply high-end intelligent PET packaging equipment PET plastic
extruder with PLC control system
PET strapping production line equipment fully meets environmental
protection requirements. PET plastic steel belt can be produced
using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
PET strapping production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature,
pressure, extrusion speed, torque, traction, etc. to ensure that
the product quality is the same every time.
The equipment is equipped with two sets of shaping oven systems,
one stretch shaping, two shaping shaping, etc. The equipment
consists of: stirring part, feeding part, drying part, dehumidification part,
main machine part, cooling part, extension part, shaping part,
small traction part, large traction part, embossing part, winding
machine, etc.
PET plastic steel belt winding machine can be equipped with: Automatic winding machine or semi-automatic winding machine
Technical parameter of PET strap double output extrusion line
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials |
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 |
| Width (mm) | 0.4-1.2 |
| Maximum line speed(m/min) | >=150 | >=150 | >=150 | >=150 | >=150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder |
| Winding machine | Automatic winding/ Semi-automatic winding |
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Horizontal mixer
It can mix bottle flakes or crushed materials together during
production to make the quality of the produced PET tape better.
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw
material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly
and doesn't need to change the mould head
3. The products has the same transparency as made from new
polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower.
PET packaging belt production line process
Material→mixing material→pre-drying material →dehumidification and drying
material→Melting material and extrusion→material embryo
expression(with embryo) cooling molding→pre-heating oven→firstly
streching→secondary stretching→embossing→setting oven to shaping→cooling→Final product winder
After-sales service:
Our PET plastic steel belt equipment provides comprehensive
technical support and services. We have an experienced technical
team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic
steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt
equipment.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt
equipment?
A: Different models have different extrusion capacities, ranging
from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt
equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt
equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
