Electric Arc Furnace Water Cooled Roof with Advanced Cooling System

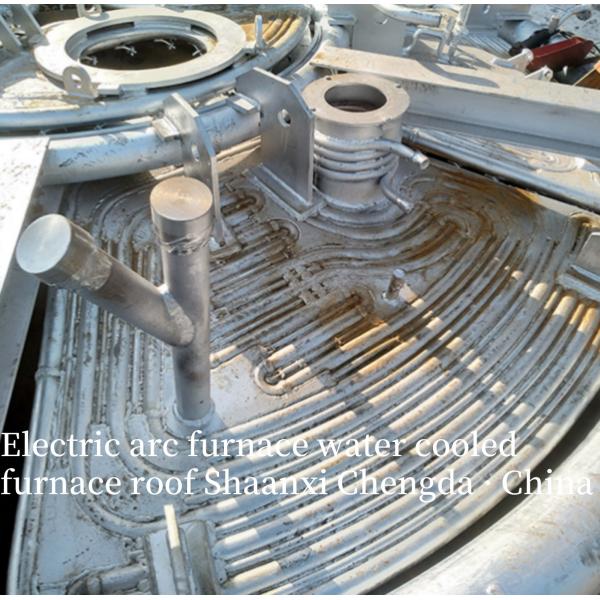

Electric arc furnace water cooled furnace roof

There are many types of furnace cover structures of electric arc furnaces, Can be selected according to the different power of electric arc furnaces.

1.Brick type furnace cover

2. Box type water cooling furnace cover

3. Tube type water cooling furnace cover

4. Atomizing furnace cover
Among them, the brick type furnace cover is suitable for ordinary power arc furnace.
Box type water cooled furnace covers are suitable for high power arc furnaces
The tube type water cooled furnace cover is mainly used in ultra-high power electric arc furnace, and the atomizing furnace cover has a wide application range and is basically not limited by power.
In the design of ultra-high power DC electric arc furnace, the tube type water-cooled furnace cover with good cooling effect and the most widely used is selected.

Water cooling furnace cover structure diagram:

  Shaanxi Chengda Industrial Furnace Manufacturing Co., Ltd. is a high-tech enterprise specialized in the research, design, and manufacturing of various industrial furnaces, including AC and DC steelmaking electric arc furnaces, ladle refining furnaces, ferroalloy ore thermal furnaces, ferroalloy refining furnaces, electric slag remelting furnaces, non-standard metallurgical equipment, heat treatment equipment, and various related environmental protection dust removal equipment. The company's product design and manufacturing capabilities have reached 100 tons for electric arc furnaces, 160 tons for ladle refining furnaces, and a capacity range of 3600KVA to 35000KVA for ore thermal furnaces. In accordance with national industrial policies, we have designed high and low voltage compensation systems, dust removal systems, ferroalloy DC furnaces, and new energy equipment suitable for the actual operation of the equipment. For inquiries, please contact Mr. Du at 13991381852 or Mr. Chen

13709182307.
