Max 6000mm Regular Grip Strut Walkway For Stair Treads Ramps And Decks

Max 6000mm Regular Grip Strut - Walkway For Stair Treads Ramps And Decks​

Grip Strut Plank Grating also named diamond grip plank grading, grip strut safety grating. Our this perforated plank grating has serrated surface, provide a safer surface than many other grating products. It helps eliminate costly accidents, which reduces insurance costs and lost production. The open diamond pattern allows most debris and dirt to drain. Grip Strut Plank Grating is available in serrated and smooth diamond patterns, create non-slip walkways and stair treads. Material be Pre-Galvanized,Plain Steel,Stainless Steel and Aluminum Alloy.

• All Guorun safety gratings are also available as flat blanks without folded edges.

• In that case, the maximum embossed field width must not be greater than 750 mm for diamond forms.

• For manufacturing reasons, these flat cuts have a slightly curved finish.

• Gratings with other dimensions (H/W/L) than those mentioned above can also be produced.

• Gratings with unperforated edges or surfaces on one or both front surfaces are also available.

• We can also be supplied with ø 5-mm drain holes.

• Please contact us for further technical questions.

Material

• 12 & 14 ga. Pre-Galvanized and Plain Steel
  (.080 and .100 ga. 5052-H32)

• Type 304 16 ga. Stainless Steel
  (Type 316L Stainless by special order)

Widths

• 24”

Heights

• 4-1/2”

Lengths

• 10’, 12’, or cut to size, walkways up to 24’ by special order.
  (Stock sizes are run to full diamonds)

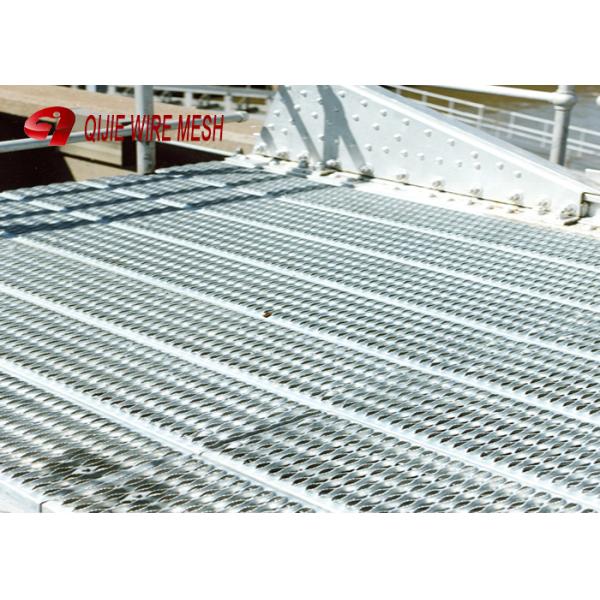

Applications of Grip Strut Plank
Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.

Features of Grtp Strut Grating:

• High strength lightweight metal grating designed for safety underfoot.
• Unique one-piece diamond-shaped construction provides slip resistance in all directions.
• Easy Installation, goes down fast without fasteners, stays where you want it
• Economical, long life, low maintenance on roof and walkway
• Flexible size and shapes, Innovative design easily adapts, any special fabrication of cutting, forming, bending and welding are supported.
• Suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions
• Wide applications, commonly used for work platforms, industrial flooring, catwalks, balconies, storage areas, walkways, and stair treads

Advantages of grip strut grating

Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.

• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.

• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.

• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.

• These light weight yet brawny panels permit substantial reduction in structural steel requirements.

Versatility of grip strut grating

Available in a variety of standard widths and channel heights.

• Numerous non-standard shapes and sizes.

• One piece construction with no welds or rivets to fail, minimizes need for plant fabrication.

• Special shapes and forming can be accomplished to suit unusual requirements.

Safer, serrated surface of grip strut grating

• Grips soles securely in all directions.

• Non-slip surface is ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions.

• Openings are small enough to catch most falling tools and other dangerous objects.
