Raylaser Dual-Chuck Fiber Laser Tube Cutter: Precision for Pipes,
Profiles & Structural Steel
Unlock Industrial Efficiency with 3000W Power & 6m Capacity
Shanghai Raylaser’s Dual-Chuck Laser Tube Cutting System
revolutionizes processing for metal fabricators across the USA,
Saudi Arabia, and beyond. Engineered for high-speed precision on
round tubes, square pipes, channels, and H-beams up to
6 meters long, this 3000W fiber laser machine combines robust
engineering with intelligent automation—ideal for construction,
oil/gas, and architectural industries.
Key Product Features
Dual-Chuck Efficiency
Twin 220mm servo chucks enable continuous loading/unloading
45% reduced idle time vs. single-chuck systems
Automatic clamping for Ø20–220mm pipes
High-Power 3000W Fiber Laser
Cuts carbon steel (0.5–12mm), stainless (0.5–10mm), aluminum
(0.5–8mm)
±0.05mm/m precision with linear encoder feedback
Zero-touch piercing for flawless holes on structural steel

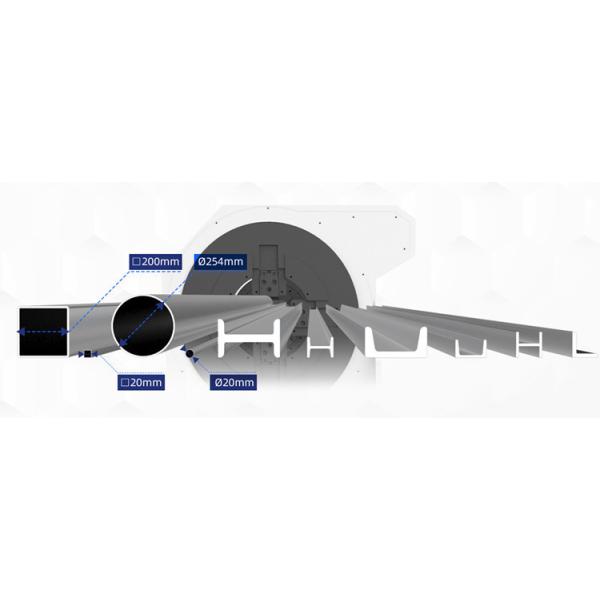

Multi-Profile Mastery
Processes rounds, squares, rectangles, channels, H-beams, angles
Integrated rotary axis with 200 RPM torque
3D bevel cutting (0–45°) for weld-ready joints
Smart Production Ecosystem
15" touchscreen HMI with RayOS controller
IoT-ready for remote job monitoring
Collision avoidance & material sag compensation
5 Competitive Advantages
Desert-Proof Durability
IP54 sealed optics & chiller for Saudi sand/dust environments.
OSHA/SASO Compliance
Full safety enclosure with emergency stops and laser shielding.
Plug-and-Play Installation
Pre-calibrated modules (assembly <8 hours).
Low-Cost Operation
30% energy savings vs. plasma; minimal consumables.
Intelligent Software
Nest 6m pipes with <3% material waste (AutoNEST Pro).
Technical Specifications
| Parameter | Specification |
|---|
| Laser Power | 3000W Fiber (Raycus/IPG) |
| Max Material Length | 6000mm (236") |
| Chuck Size | 220mm (8.7") |
| Cutting Diameter | Ø20–220mm (Round), 20x20–220x220mm (Square) |
| Structural Capacity | H-Beam: 150×150mm, Channel: 120×60mm |
| Positioning Accuracy | ±0.05mm/m |
| Rotary Speed | 200 RPM |
| Power Supply | 380V/50Hz or 460V/60Hz (USA/Saudi) |
FAQs: Laser Tube Cutting Solutions
Q: Can it cut asymmetrical profiles like channels?
A: Yes! Patented chuck adapters securely hold channels, angles, and
H-beams without deformation.
Q: What about maintenance in remote locations?
A: We stock parts in Houston (USA) and Dammam (Saudi). Remote
diagnostics via TeamViewer resolve 80% of issues.
Q: How fast is the cutting cycle for 100mm steel pipe?
A: At 3000W:
6mm wall: 3.2m/min
10mm wall: 1.1m/min
Q: Do you provide operator training?
A: Yes—free 3-day onsite training + lifetime video access.
Q: What shipping protection is offered?
A: Triple-layer: vibration-absorbing crates, climate-controlled
containers, GPS tracking.
The Most advanced and ease of use system to give you no waste
material.
Samples
Why Global Manufacturers Choose Raylaser
*"After installing Raylaser’s dual-chuck system in our Dubai
facility, pipe processing time dropped by 60%. The 3000W laser
handles carbon and stainless with zero burrs."*
– Production Manager, Gulf Piping Solutions
Global Support Network
USA: Technicians in4 states
Saudi Arabia: Arabic/English support in Riyadh/Jeddah
Parts Guarantee: 72-hour emergency dispatch
