Product Description

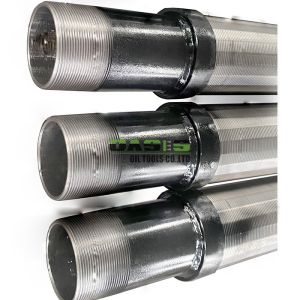

Products name:Pipe Base Screen
Pipe base screen combines the hydraulic efficiency of a continuous
slot wedge wire screen with the strength of a pipe, so it is also
called a double-layer screen. 2 types of base pipe here are
perforated pipe and slotted pipe usually. Every hole and slot on
the base pipe is visually inspected and cleaned of burr material.
Base pipes can be manufactured using stainless steel grades or API
5CT carbon steel casing. Screen and pipe are welded together to
make a rugged, reliable unit for deep vertical wells and long,
horizontal remediation of supply wells. The pipe-based screen is
recommended when high collapse resistance is required and when the
screens’ length generates a high longitudinal constraint.
Pipe base screens consist of the base pipe and the
wire-wrapped-screen.The screen is indispensable for the oil and
gas, water wells, and geothermal industries
▪ High-quality stainless steel material
Our pipe base screens are manufactured with premium stainless steel
or high-grade carbon steel, ensuring excellent corrosion resistance
and structural integrity.
The screens are designed to withstand harsh environmental
conditions and high-pressure applications.
▪ Innovative Design
Features a precise wire-wrapped outer jacket over a perforated base
pipe.
The slot size is meticulously controlled to provide maximum
filtration efficiency, preventing sand and debris from entering the
well while maintaining high flow rates.
▪ Enhanced Filtration
The Pipe Base Screen effectively blocks fine particles, reducing
the risk of clogging and extending the operational life of the
well.
Suitable for various formations and applications, providing
versatile and reliable performance.
▪ Easy Installation and Maintenance
The design facilitates straightforward installation and integration
into existing systems.
Minimal maintenance requirements due to the high durability and
self-cleaning properties.
▪ Customizable Options
Available in various diameters, lengths, and slot sizes to meet
specific project requirements.
Custom configurations can be produced to cater to unique
operational challenges.
Applications of Pipe Base Screens
1.Oil and Gas Extraction: Ensures efficient sand control in
conventional and unconventional wells, optimizing production rates
and reducing downtime.
2.Water Wells: Provides reliable filtration for municipal,
agricultural, and industrial water wells, safeguarding water
quality and well integrity.
3.Geothermal Wells: Enhances the performance and lifespan of
geothermal energy systems by preventing particulate contamination.
Benefits of Pipe Base Screens
1.Unparalleled Protection: The pipe base screen provides a robust
barrier against pipeline blockages, ensuring uninterrupted flow and
minimizing the risk of pipeline failures.
2.Reduced Maintenance Costs: By preventing debris and contaminants
from entering the pipeline, the screen reduces the need for
frequent cleaning and maintenance, resulting in significant cost
savings.
3.Increased Efficiency: Ensure uninterrupted pipeline operation,
minimizing downtime and maximizing productivity.
4.Environmental Protection: By preventing pipeline failures, the
pipe base screen helps protect the environment from oil spills and
other hazardous material leaks.
Packing:
Standard international package for the stainless steel well screens
plate for oil filter
1. Wood package to keep the goods without the wet from the sea and
the collision in the container
2. Plastics package:
Cheaper than the wood package and save more space for the goods
load.
3. Woods pieces package:
Stronger than the plastic package, and cheaper than the wood
package,
The best choose for the filters.
Our pipe base screens are manufactured with strict quality
standards to be at par with international standards. The screen
jackets are manufactured by spirally wounding narrow faced Vee-Wire
around a cage of longitudinal support rods. Each intersection point
of these wires is fusion welded. These jackets are then mounted
over seamless pipe(API Casing, tubing) which is perforated as per
international standards to ensure flow performance, and then both
ends of jacket are welded on to the seamless pipe.
We are a manufacturer of pipe base screen in china.The base pipe,
casing or tubing, is selected to API specifications by size, grade
and weight for each of your required applications.Our slip-on type
of pipe base screen is manufactured from two components: the base
pipe and the slip-on screen.The base pipe will be perforated with a
series of holes drilled to a pre-determined quantity and pattern,
to carefully balance flow-capacity at each end for both down-hole
handling.The holes are then debarred and the joint cleaned,
inspected and treated to give the base pipe a long shelf life.Our
slip-on screens are manufactured to very exact diameter, length
gauge and strength tolerances. This is done by selecting the
required profile wire and support rod, which determine the
flow-capacity and strength of the slip-on screen. For each gauge
opening in the screen we select a slightly greater than that of the
perforated base pipe. This will give the pipe base screen optimum
flow-capacity at minimum pressure drop across the screen.If you
have any enquiry of pipe base screen , please feel free to contact
us.
