    TL720D MEMS Gyroscope Sensor with Azimuth Angle (±180°), RS232/RS485 Output, and 10grms Anti-Vibration for AGV and Industrial Control

    Ask Lasest Price
    Model Number : TL720D
    Brand Name : RION
    Price : 60 USD/Pieces
    Certification : CE, ISO
    Payment Terms : T/T,Paypal
    Supply Ability : 3000/month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

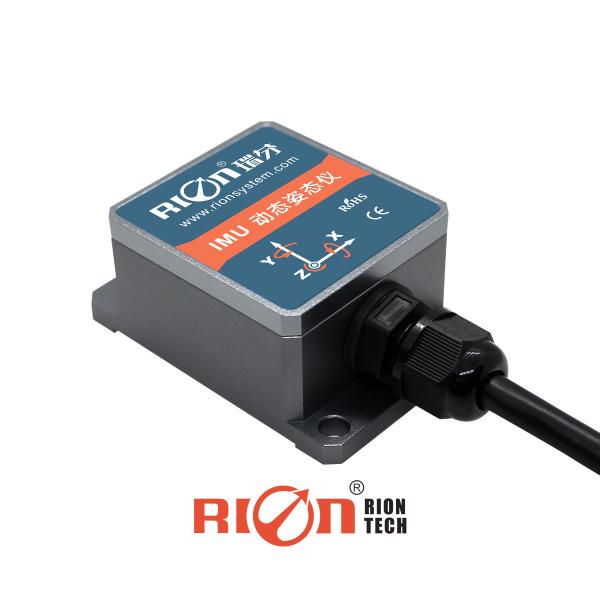

    TL720D MEMS Gyroscope Sensor with Azimuth Angle (±180°), RS232/RS485 Output, and 10grms Anti-Vibration for AGV and Industrial Control

    TL720D 152G 3-Axis Angular Sensor with Azimuth MODBUS Attitude Algorithm
    The TL720D is a newly developed small-volume dynamic attitude sensor based on the latest MEMS inertial measurement platform. Utilizing advanced dynamic attitude algorithms for gyroscope angular velocity processing, it simultaneously outputs the carrier's azimuth angle. The product integrates inertial navigation algorithms and employs attitude angle data fusion models to minimize gyro short-term drift issues.
    Key Features
    Azimuth angle output
    Strong vibration resistance
    Light weight design
    Long life with strong stability
    Cost-effective solution
    All solid state construction
    Compact & lightweight design
    RS232/RS485 output optional
    Applications
    AGV truck navigation
    Car navigation systems
    3D virtual reality
    Platform stability control
    Automotive safety systems
    Industrial control applications
    TL720D 3-Axis Angular Sensor application diagram
    Technical Specifications
    ParameterSpecification
    Measure rangeAzimuth Angle (±180)°
    Acquisition bandwidth>100Hz
    Nonlinear0.1% of FS
    Accelerometer
    Accelerometer range±4g
    Accelerometer resolution0.001g
    Accelerometer accuracy5mg
    Bias instability (allan)0.05mg
    Speed random walk coefficient (allan)0.015m/s/sqrt(h)
    Bias stability (10s average)0.15mg
    Gyro
    Gyro Angular Velocity Range±250°/s
    Angle random walk coefficient (allan)0.30°/sqrt(h)
    Bias stability (10s smooth)10°/h
    Starting timeAGV application: 5~6s
    AGM application: 1.5s
    Input Voltage9~36VDC / 5VDC (Optional)
    Current30mA(12V)
    Working Temperature-40℃ ~ +80℃
    Storage Temperature-40℃ ~ +85℃
    Vibration5g~10g
    Impact200g pk, 2ms, ½sine
    Working life10 years
    Output rate5Hz~200Hz can set
    Output signalRS232 or RS485
    MTBF≥98000 hours / times
    Insulation resistance≥100 Megohm
    Impact resistance100g@11ms / 3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms / 10~1000Hz
    ProtectionIP67
    Weight≤135g (including 1 meter standard cable)
    TL720D sensor dimensional diagram
    TL720D sensor installation and connection diagram
