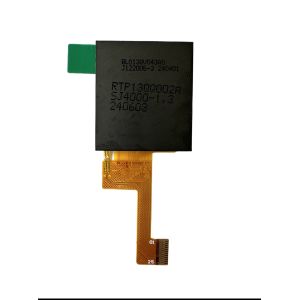

1.3-inch TFT LCD module delivers outstanding visual performance in a space-efficient design. With a resolution of 128(RGB) × 128 pixels and an all-angle viewing capability (All O'Clock), it ensures vivid image clarity and consistent color reproduction from any direction—ideal for wearable devices, portable instruments, and compact interfaces.
Engineered with transmissive TFT technology and driven by the GC9107 IC, this display integrates an LED backlight with a high brightness of 700 cd/m², providing excellent visibility even in bright environments. Its contrast ratio of 1200:1 ensures deep blacks and crisp visuals, while the 25ms response time supports smooth and responsive interaction.
Designed for versatility and ease of integration, the module features an MCU interface and a square active area of 23.42 × 23.42 mm, housed in a slim profile of 26.0(H) × 29.15(W) × 1.93(T) mm. It operates reliably within a temperature range of -20℃ to 70℃, and can be stored safely from -30℃ to 80℃, making it suitable for both indoor and outdoor applications.
Whether used in smart wearables, compact control panels, or handheld devices, this display module offers robust performance in a small form factor.
| NO. | Symbol | Level | Function |
| 1 | VCC | | system voltage |
| 2 | GND | | Ground |
| 3 | RESET | | This signal will reset the device and it must be
applied to properly |
| 4 | CS | | -Chip selection pin |
| 5 | RS | | -Display data/command selection pin in parallel
interface |
| 6 | WR | | -Write enable in MCU parallel interface |
| 7 | RD | | -Read enable in8080 MCU parallel interface |
| 8-15 | DB0-DB7 | | data bus. |
| 16 | LEDA | | LED,anode |
| 17 | LEDK | | LED,cathode |
| 18-22 | NC | | NC |
| 23-24 | GND | | Ground |
| 25 | TE | | TE |
