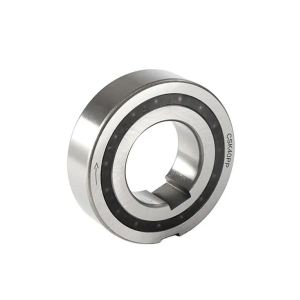

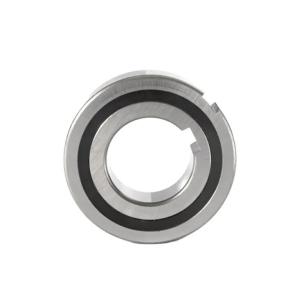

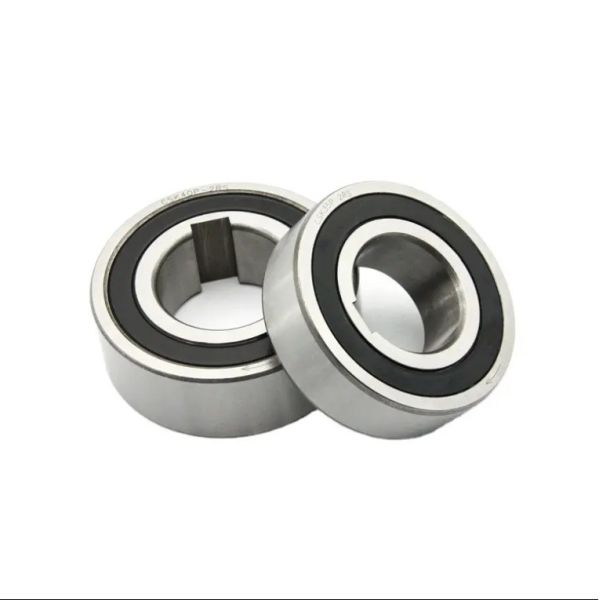

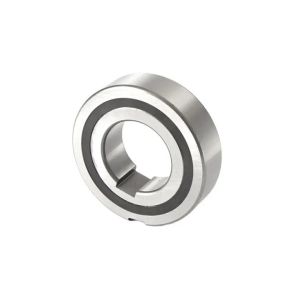

CSK20 CSK 20 P CSK20PP CSK20-2RS One Way Bearings Overrunning Clutch Backstop Clutch

CSK20 One Way Clutch Bearing for Textile machinery

Description of CSK One Way Clutch Bearing:

The CSK One Way Bearing Series is a sprag type freewheel integrated into the 6200 radial bearing series. The internal part of the bearing is protected by a seal but additional seals are recommended especially when the working temperature exceeds 50ºC. All CSK One Way Bearings are equipped with chrome formed sprags that increases the over-run life several times. Torque transmission is ensured by a press fit assembly into a rigid outer housing and onto a shaft with an N6 tolerance. Initial bearing radial clearance is set at C5 and is reduced if using the press fit as specified.

The CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction. In addition to the basic CSK model, type CSK..P features a keyway on the inner race and CSK..PP features a keyway on both the inner and outer race. For this reason it can be keyed to a shaft.

Dimension of CSK One Way Clutch Bearing:

Shaanxi Fortune Industries Co.,ltd located in Xi’an of the oldest city in China. We have experience for over 15 years, As a professional exporter in Ball & Roller Bearings and Auto Parts on standard and nonstandard, our success is based on:

High Quality Bearing at the Good Price
In this competitive world economy it is critical that we provide you with a bearing that meets your different requirements at an affordable price. We can offer bearings at multiple price points from hundreds of factories established stable relations with us in China.

Experienced Staff
We target specific automotive industries, learn about their particular uses and bearing needs, and supply exactly what is required. We have specialists on staff who understand these markets and can respond promptly. we would be glad to create most suitable solution for your needs.

Bearing in Variety
You will find thousands kinds of bearing on standard on our Website: www.sft-bearings.com, we trust you can choose bearing you required. If you can not identify your bearing, Just tell us the dimensions we offer bearing on non-standard.

Professional Service
Our technical team are experienced in automobile bearings, industry bearings, We are able to provide support on bearing selection, design optimization, product development, bearing mounting, bearing maintenance, lubrication and etc.

Quality control system

In 2011, We have been awarded Quality Management System Certificate No. 00111Q25911R0S / 6100 for compliance with the standard ISO9001 : 2008　＆　GB/T 19001 - 2008 apply in Export of Bearing and Auto Parts.

Bearings and More
In addition to ball and roller bearings and auto parts, we also carry Linear Motion, Roller Chain, Motorcycle Sprocket and more. Please view our website.

Today, All of our products have been exported to dozens of countries and regions all over the world, such as Europe, America, southeast Asia, middle east, Africa etc. and products are used in a broad range of applications, including automobiles, railways, steel industry, motorcycle, agriculture machine, wind turbines, papermaking machine, office equipment, machinery tools etc.

We do best spare parts and transmission parts for you!
