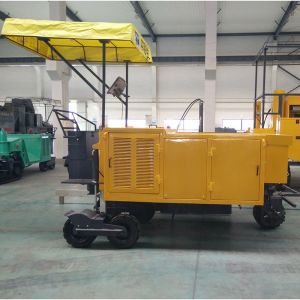

Highly Maneuverable Slipform Paver for Curbs Slope Protection and
Drainage Ditches
Usage conditions:
Applicable to highway and municipal road construction fields:
curbs, slope protection and drainage ditches, etc.
Application features:
The small tracked curbstone sliding mode machine is a specialized
small-scale mechanical equipment used for curbstone construction,
with the following characteristics:
1. Strong maneuverability
The tracked walking method enables it to move flexibly on various
complex terrains and uneven ground, adapting to the needs of
different construction sites.
2. Compact size
The body is relatively small, making it easy to work in narrow
construction areas such as city streets, alleys, or limited space
construction sites.
3. Easy to operate
The control system design is simple, easy for operators to master,
and can be operated after simple training.
4. Efficient construction
By using sliding mode technology, the formation of curbstones can
be continuously and quickly completed, improving construction
efficiency and shortening the construction period.
5. High cost-effectiveness
The equipment purchase cost is relatively low, and it saves
manpower and materials during the construction process, making it
cost-effective.
6. Good adaptability
It can adapt to the construction requirements of different types
and specifications of curbstones, and achieve diversified shapes
and sizes by adjusting the mold.
7. Reliable quality
It can ensure the forming quality of curbstones, with smooth
surfaces and straight lines, improving the aesthetics and service
life of curbstones.
Technical Parameters:
No. | Project | Unit | Parameter |
1 | Engine | / | Yanmar 3TNV88/Quanjiao QC485G |
2 | hydraulic pump | / | American Sauer variable pump KRR038 |
3 | Paving speed | m/min | 0～12 |
4 | Driving speed | m/min | 0～33 |
5 | Paving size | cm | Curb stone width 125*height 40 |
6 | Host weight | kg | 2100 |
7 | Shipping size(L*W*H) | mm | 3200*1500*1300 |
Construction case:
