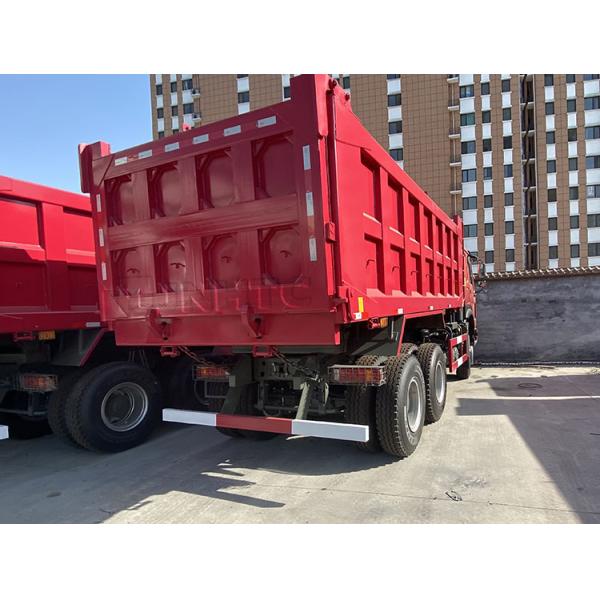

    Cheap price 10 Wheels Good Quality 336hp Howo 30 Tons Tipper Dump Truck

    Ask Lasest Price
    Brand Name : Howo
    Model Number : jnhtc
    Certification : ISO CCC
    Price : USD23100-25410
    Payment Terms : L/C, T/T
    Supply Ability : 50 units per week
    Delivery Time : 45 Work days
    • Product Details
    • Company Profile

    Cheap price 10 Wheels Good Quality 336hp Howo 30 Tons Tipper Dump Truck

    Cheap price 10 Wheels Dump Truck Good Quality 336hp Howo 30 Tons Tipper Dump Truck

    Model
    ZZ3257V3847B1
    Driver's Cab
    HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
    Engine
    Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
    cylinder in-line with water cooling, turbo-charging & inter cooling.
    Maximum output: 400PS (294kW) at 2100 rpm
    Maximum torque: 2060Nm at 1200-1500rpm
    Bore: 126mm Stroke: 155mm
    Displacement: 11.596L
    Brand: Weichai
    Steering
    Model: BOSCH
    Hydraulic steering with power assistance
    Left hand driving
    Clutch
    Φ430 Pull-type diaphragm spring clutch
    Transmission
    Model: HW19710, 10 forward and 2 reverse
    Manual type
    With transmission power take-off HW70
    Max Torque: 1900N·M
    Front Axle
    Model: HF9
    Drum brake system
    Rated loading capacity :9000kgs
    Rear Axle
    Model: MCP16ZG
    Capacity: 16000kgs
    Drum braking steering axle,self-adjusting arm
    Speed ratio:
    Wheelbase
    3800+1350 mm
    Brake System
    Type :Wabco braking system
    ABS 4S/4M
    Engine exhaust valve brake
    Oil Tanker
    300L aluminum alloy fuel tank
    Tires
    Types: 12.00R20 radial tire; 18PR
    10 pcs, plus one pc spare tire
    Bumper
    Metal bumper
    Dump body
    5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
    fender, headlight cover.
    Dimensions in mm
    Front wheel track (mm): 2022
    Rear wheel track (mm):1830
    Overhang(front/rear) (mm):1500/1870
    Overall Dimension (mm): 8650*2580*3450
    Weight in kg
    Dead weight (kg):13500
    Gross vehicle weight (kg):25000

    A dump truck, also known as a tipper truck, is a vehicle used for transporting loose material such as sand, gravel, or demolition waste for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the delivery site.

    Uses:

    • Construction: Transporting construction materials like sand, gravel, and concrete.
    • Mining: Moving minerals and ores from mining sites.
    • Landscaping: Delivering soil, mulch, and other landscaping materials.
    • Waste Management: Hauling demolition waste and other debris.

    Safety Considerations:

    • Ensure the load is evenly distributed to prevent tipping.
    • Secure the tailgate properly to avoid accidental dumping.
    • Be mindful of the dump truck's height when the bed is raised, especially around overhead wires or structures.
    • Regular maintenance checks on hydraulic systems and brakes to ensure safe operation.

    Maintenance Tips:

    • Regularly check and maintain hydraulic systems.
    • Inspect the dump body for wear and tear, especially the hinges and hydraulic rams.
    • Keep the engine and other mechanical components in good condition.
    • Ensure the tires are properly inflated and free of damage.
