    Indoor ommi directional antenna 350-6000MHz

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-ANT-ODA-3560-ON-150
    Certification : RoHS/ISO9000
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50pcs per day
    Delivery Time : depends on your quantity
    • Product Details
    • Company Profile

    Indoor ommi directional antenna 350-6000MHz

    Indoor ommi directional antenna 350-6000MHz


    • Wide Frequency Band 350-6000MHz
    • IM3 <-150dBc @ 2x2 W
    • Slim Mimo Omni

    VN-ANT-ODA-3560-ON-150.pdf

    Electrical Specifications
    Frequency rangeMHz350-520617-698806-9601710-27003300-40005000-6000
    PolarizationHorizontal
    GaindBi1.5±0.52.0±0.52.5±0.54.0±0.55.0±1.06.0±1.0
    Horizontal beam widthº360
    Vertical beam widthº120855540
    VSWR≤2.5≤2.0≤1.5≤1.5≤1.8≤2.5
    Intermodulation IM3dBc≤-140 or -150 (2X20W)
    ImpedanceΩ50
    Power Handlingw50
    Lightning ProtectionDC Ground
    Mechanical SpecificationsInstallation Diagram
    Connector typeN-Female
    Connector Positionbottom
    DimensionsmmΦ320x25
    Antenna weightkg0.85
    Radiating element materalAl
    Radome material and ColorABS, White
    Mounting kitMounts to ceiling
    Operating temperature range°C-40~+65
    Operational Humidity%< 95
    900MHz1710MHz3500MHz
    Horizontal PatternVertical Pattern

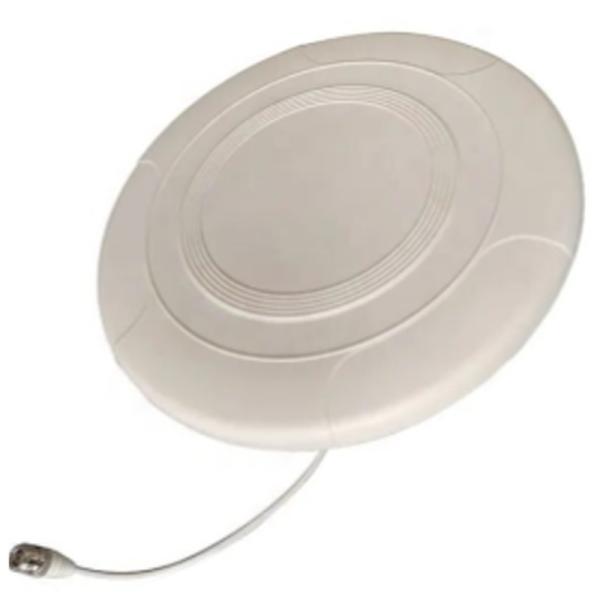

    Quality Indoor ommi directional antenna 350-6000MHz for sale
