    Black Underground Splice Enclosure Flame Retardant For Data Center

    Ask Lasest Price
    Model Number : FOSC-D6B-H
    Brand Name : DOWELL
    Price :
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000 PCS Per 7 Days
    Delivery Time : 7-15 Days
    • Product Details
    • Company Profile

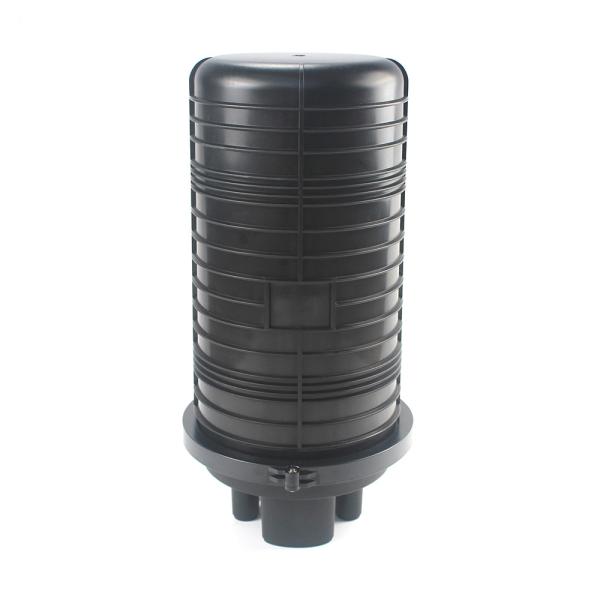

    Black Underground Splice Enclosure Flame Retardant For Data Center

    288Cores Black Optical Fiber Cable Joint Closure 1 In 6 Out Outdoor FOSC

    Fiber optic closures are critical components in fiber optic networks, providing protection and organization for fiber optic connections. By choosing the right closure and maintaining it properly, you can ensure the reliability and longevity of your fiber optic infrastructure.

    Specification

    Specification515mm×310mm
    Weight (excluding outside box)3000 g— 4600g
    Number of inlet/out ports7 pieces in general
    Diameter of fiber cableΦ5mm~Φ38 mm
    Capacity of FOSCBunchy: 24-288(cores), Ribbon: up to864(cores)

    Main components

    Name of componentsQuantityUsageRemarks
    FOSC cover1 pcsProtecting fiber cable splices in wholeHeight x Diameter
    360mm x 177mm
    Fiber optic splice tray (FOST)Max. 12 trays (bunchy)
    Max. 12 trays (ribbon)
    Fixing heat shrinkable protective sleeve and holding fibersuitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
    Fiber holding tray1 pcsHolding fibers with protective coat
    Base1setFixing internal and external structure
    Plastic hoop1 setFixing between FOSC cover and base
    Seal fitting1 pcsSealing between FOSC cover and base
    Pressure testing valve1 setAfter inject air, it is used for pressure testing and sealing testingConfiguration as per requirement
    Earthing deriving device1 setDeriving metal parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement

    Application

    Aerial, underground, wall-mounting, duct-mounting and handhole- mounting.

    The ambient temperature ranges from –40℃ to +65℃.
